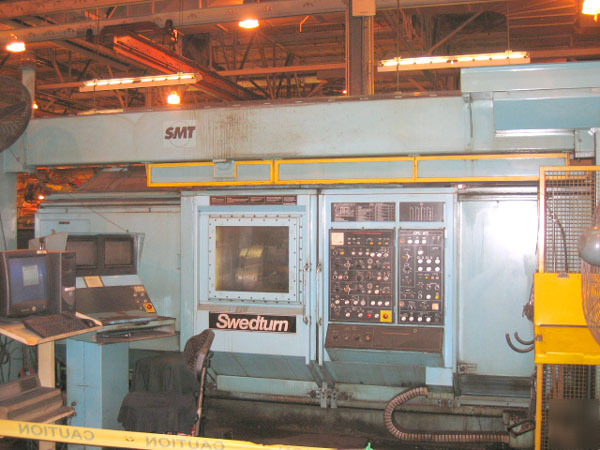

SWEDTURN ST 500 CNC LATHE* Swing Over Bed: 25.5" Swing Over Upper Slide: 19.6" Swing Over Lower Slide: 17.1" Chuck Size: 24" 3-Jaw Maxi-Grip Spindle Motor: 84.4HP/93.8HP Spindle Speed:175-2000 Rpm. Spindle Bore: 4.3" Spindle Nose: A2-11 Axis Travels: Upper Slide X1 15.0" Z1 70.6" Lower Slide X2 10.23" Z2 55.7" C Axis: 3 Hp. 12.8 Rpm. .001 Grad. .0005 Resolution Max. Axis Traverse Rate: 492"/Min. Resolution: .00003937 (1 Micron) Min. Tool Correction: .00003937 (1 Micron) ATC: Double Magazine 74 Tools Tool Taper: 40 NT Equipped With: Tool Tip Gauging 2 Axis In Process Gauging Aux. High Presure Coolant Thru Aux.Spindle Coolant CC4200 Control OS9 Ver.5.6 Operating Sys. 1997 05968000 Software Chip Conveyor Misc.Tooling Approximate Overall Dimensions: 372" L-R x 132" F-B x 180" H Approximate Weight: 50,000 Lbs. Serial Number: 596094 (New 1992) * PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION Email us at Call our Sales Staff at Prices do not include any federal, state or local taxes, which are in addition to the purchase price and must be paid by the Purchaser. Any and all foreign duties and taxes are the responsibility of Purchaser. Unless Purchaser furnishes PMS with a tax exemption certificate, any sales, use, excise, or other similar tax, where applicable, shall also be the responsibility of Purchaser and may, at the election of PMS, be added to the quoted purchase price and invoiced by PMS to Purchaser. The failure of PMS to invoice such taxes does not excuse the Purchaser from responsibility for paying necessary taxes. Some machinery and equipment is located at Fortune 100 Manufacturing Facilities. Most of the machinery and equipment located at these Facilities is disconnected and cannot be seen under power. Unless specifically listed in writing by PMS, all machinery and equipment uses 3 Phase power. (US & Canada) (outside US & Canada) |
