NEW ~ ONE (1), TWO (2)-PIECE SET, SKARSHAUG TESTING LABORATORY (Ames, Iowa) MODEL A-100-2G, 30 KVAC DIELECTRIC TESTING SYSTEM.
ACCESSORY EQUIPMENT ITEMS (SEE PHOTOS) INCLUDED WITH THIS DIELECTRIC TESTING SYSTEM ARE AS FOLLOWS:
2 - PIPE ADAPTOR / LINE HOSE ELECTRODES.
2 - PLEXIGLAS & RUBBER BUMPER.
4 - NUTS, BOLTS & WASHERS PAK.

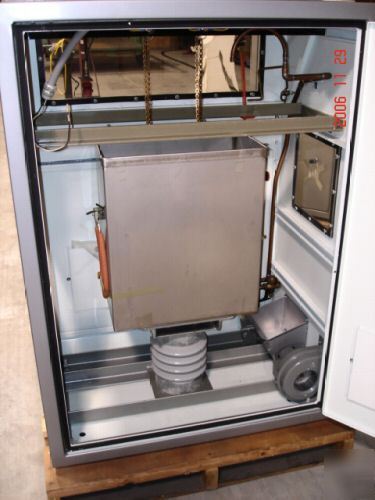

THIS DIELECTRIC TESTING SYSTEM WAS PRIMARILY DESIGNED FOR TESTING THE SAFETY OF CLOTHING ITEMS, SUPPLIES AND MINOR EQUIPMENT USED BY PERSONNEL IN HIGH VOLTAGE POWER LINE MAINTENANCE. THIS TESTING EQUIPMENT WAS DESIGNED TO TEST CLASSES 0, 1, 2 AND 3. ELECTRICAL TESTS PLACE THE ITEMS UNDER APPROPRIATE HIGH VOLTAGE CHARGES FOR FAULT FINDING AND MEASURE THE LEAKAGE OF CURRENT THROUGH THE ITEM UNDER TEST. THIS DIELECTRIC TESTING SYSTEM WILL SIMULTANEOUSLY TEST TWO (2) EACH OR ONE (1) PAIR OF GLOVES, ONE (1) SLEEVE, HARD HAT OR JUMPER CABLE WHEN PLACED IN THE STATIONARY TEST CELL (RACK) OF THE MAIN CABINET. THE TEST CELL IS CONFIGURED WITH A STAINLESS STEEL WATER RESERVOIR ALLOWING THE OPERATOR TO PERFORM WET TESTING. THE TEST CELL IS FULLY PLUMBED WITH WATER SUPPLY FILL PIPING WHICH INCLUDES A SPRING-LOADED FOOT OPERATED FILL VALVE FOR QUICK AND ACCURATE FILL AND LEVEL CONTROL. THIS CABINET IS ALSO EQUIPPED WITH WATER DRAIN PLUMBING. WHEN CONNECTED TO AN AUXILIARY SHELTER OR CAGE APPROPRIATELY GROUNDED, THE BASIC UNIT MAY BE USED TO TEST BLANKETS, LINE HOSE, HOODS, DEAD-END PROTECTORS, MATTING, OR OTHER PROTECTIVE DEVICES. THIS SKARSHAUG MODEL A-100-2G WILL ALSO TEST OTHER ITEMS UP TO 30 KVAC.
EQUIPMENT MANUALS & DRAWINGS INCLUDED ARE; THE OPERATION AND MAINTENANCE MANUAL, TOGETHER WITH THE TEST CELL CABINET AND WIRING DRAWINGS AND TRANSFORMER CABINET SCHEMATIC WIRING DIAGRAMS. THE MANUFACTURER'S CALIBRATION CERTIFICATE IS INCLUDED.
INPUT POWER: 220-240 VAC, 50/60 Hz., SINGLE PHASE.
ADJUSTABLE TEST OUTPUT: 0-30 KVAC.
OUTPUT CURRENT: 167 MILLIAMPERES MAXIMUM. OUTPUT CURRENT IS LIMITED BY AN OVERLOAD DETECTOR WITH DUAL RANGE OF 50 AND 167 MILLIAMPERES FOR PRESETTING MAXIMUM ACCEPTABLE LEAKAGE CURRENT.
CAPACITY: 5 KVA; 5 MINUTES ON AND 15 MINUTES OFF.
OUTPUT TERMINATION: HIGH VOLTAGE OUTPUT CORONA BALL ON TRANSFORMER, AND GROUND RETURN TERMINAL.
CRATE DIMENSIONS & WEIGHTS: TRANSFORMER & CONTROL CABINET CRATE - L: 30" W: 30" H: 59". CRATED WEIGHT: 450 LBS. TEST CELL CABINET - L: 43" W: 28" H: 59". CRATED WEIGHT: 495 LBS.
