New - continuous horizontal band sealer seal + coder

UpUp


Subject: New - continuous horizontal band sealer seal + coder
NEW - IN BOX – HORIZONTAL BAND SEALER WITH PRINTING CODER
PACKAGING SPECIALTY STORE : 60+ YRS EXPERIENCE
Seal Thermoplastic Bags - Including Laminates - Of Any Width
APOLO Horizontal Continuous Band Sealer with Coder. (CBS-1000C)
· Seals any Termosealable Material, Including PE, PP and Laminates
· Hot Stamping (Ribbon) Printing Coder for Printing Numbers and Letters onto the Bag
· All Metal Construction (Powder Coated)
· Equipped with Photo Sensor for Optimal Printing Precision
· Simple to Use - Minimal Operator Training

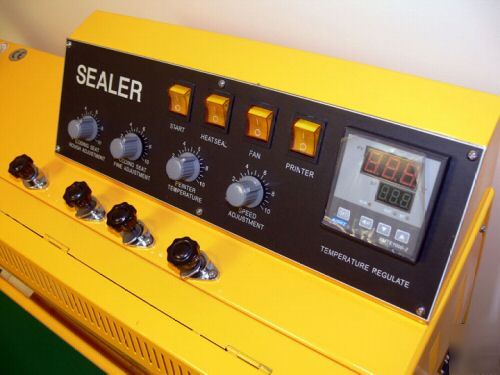

· Digital Temperature Controller with Separate Current and Desired Temperature Display
· Speed: 0 – 8 mt/min (0 – 27.25ft/min)
· Sealing Width: 0.4 (10mm)
· Sealing Method – Constant Heat
· Conveyor Width 7 (180mm)
· Motorized Rubber Conveyor with Speed Control
· Knurled Pressure Rolls with Variable Pressure Adjustment
· Temperature Adjustment: 0 - 300°C (572°F)
· One pair of Brass Cooling Bars with Forced-air Cooling.
· One Pair of Brass Heating Bars
· Two Pairs of Pressure Rollers
· 5 Points Gap Adjustment for Optimal Material Control
· Overall Machine Height Adjustment
· Distance From Sealing Head to Conveyor Adjustment
· Conveyor Height Adjustment
· Seal Head Plus Conveyor Angle Adjustment (up to 20 degrees)
· Equipped with Braking Casters
· Electrical: 110V/60HZ/1PH
· Breaker Switch For Maximum Protection
· Maximum Bag Weight: 6 lbs (2.75 kg)
· Machine Size: 610mm (24) L x 1100mm (43) W x 1030mm (41) H
· Boxed Size: 660mm (26) L x 1194mm (47) W x 1156mm (46) H
· Machine Weight: 187 lbs (85 kg)
· Boxed Weight: 275 lbs (123 Kg)
FOR OVER SIXTY YEARS WE HAVE SPECIALIZED IN END-OF-PRODUCTION-LINE MACHINERY AND MATERIALS.
Other models in stock - Please check our other listings
