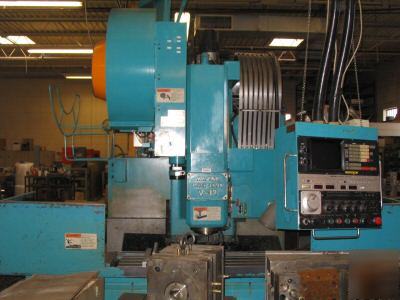

YOU ARE LOOKING AT A 1984 MAZAK V-12 VERTICAL MILLING UNIT WITH A FANUC COTROL SYSTEM IN GREAT WORKING CONDITION. OVER THE COOLANT THOUGH: 55.2"X 26.7" TABLE POSITIONING TRAVEL X x Y: 40"X 20" HEAD TRAVEL UP AND DOWN Z : 20" SPINDAL NOSE TO TABLE SURFACE: 7.87"~ 27.55" TYPE OF SPINDAL NOSE: ISO NO. 50 RNAGE OF SPINDEL SPEED : 22~ 3150RPM NO. OF SPINDEL SPEED : RPM DIRECT COMMAND EVERY 1 RPM WHEN ADJACENT POCKET IS EMPTY : 6" MAX WEIGHT OF TOOL : 33 LBS. TABLE LOAD CAPACITY(EVENLY DISTRIBUTED): 2200 LBS. MAX DRILL CAPACITY (STEEL) : 2-3/8" MAX. TAP CAPACITY (STEEL) : M40( 1-3/4", 8UMC) MAIN DRIVE MOTOR : DC 12HP ( 9 KW ) 30 min. RATING MACHINE WEIGHT : 16,300 LBS. SPECIFICATIONS OF NC EQUIPMENT: CONTROL FUNCTIONS: POSITIONING, LINEAR & CIRCULAR INTERPOLATION CONTROLLED AXIS: 3 AXES: X, Y & Z SIMULTANEOUSLY CONTROLLABLE AXIS: 3 AXES COMMANDING METHOD : INCREMENTAL / ABSOLUTE (CHANGE OVER BY G CODE ) TAPE READER: WITH REEL ( 150 M STORING CAPACITY) TOOL OFFSET: +- 6 DIGIT 64 SET MINIMUM INCREMENT: .001MM ( 0.0001INCH) FEEDRATE DESIGNATION: F4 DIGIT DIRECT COMMAND ( mm / min) RAPID TRAVERSE: 12000 MM/ MIN ( 480 ipm ) X,Y,Z AXES BACKLASH COMPENSATION: O~ 255u TAPE MEMORY AND EDIT: 40 M (132 ft. ) MDI & DPL: KEY BOARD -TYPE MDI AND CRT DISPLAY - AUTOMATIC REFERENCE POINT RETURN - SEQUENCE NO. DISPLAY AND SERACH - TAPE MEMORY AND EDIT 80,320M ( 264, 1056 ft.) 3 BRAND NEW MAINTENANCE MANUAL |
