Subject: Mazak super quick turn 15MS turn/mill center
MAZAK SUPER QUICK TURN 15MS TURN/MILL CENTER
MANUFACTURED 1993, RACO Stock Number R015138
FEATURING: SUB SPINDLE, BAR FEED, LIVE MILLING ( C AXIS )
MAXIMUM MACHINING DIAMETER - 11.81"
MAXIMUM MACHINING LENGTH - 20.90"
MAXIMUM BAR WORK DIAMETER - 2"
SPINDLE SPEED - 35 TO 5000 RPM
NUMBER OF SPINDLE SPEED RANGES - STEPLESS
SECOND SPINDLE SPEED - 180 TO 6000 RPM
SECOND SPINDLE RAPID TRAVERSE RATE - 708 IPM
TURRET TYPE - DODECAGONAL DRUM
TURRET INDEX TIME ( 1 STEP/FULL STEP ) - 0.5 SEC./1.4 SEC.
ROTARY TOOL SPEED RANGE - 120 TO 3000 RPM
RAPID TRAVERSE RATE, X & Z AXIS - 1180 IPM
RAPID TRAVERSE RATE, C AXIS - 100 RPM
MAIN SPINDLE MOTOR, 30 MIN. RATING - 20 HP A.C.
SECOND SPINDLE MOTOR, 10 MIN. - 10 HP A.C.
ROTARY TOOL MOTOR, 10 MIN. - 4.1 HP A.C.

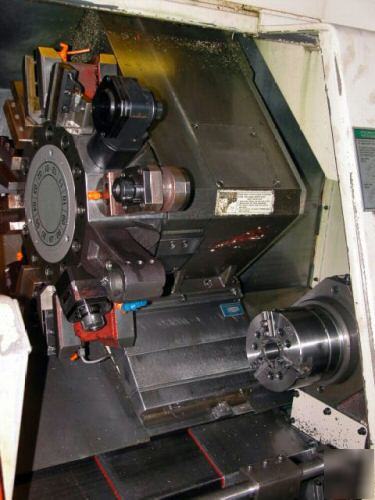

MISCELLANEOUS TOOLING INCLUDING (1) STRAIGHT LIVE HOLDER AND
( 2 ) RIGHT ANGLE LIVE HOLDERS
8" MAIN CHUCK AND 6" ON THE SUB.
SMW SPACESAVER BARFEED ( 4' MAGAZINE TYPE ) #12.65 AUTOLOAD
APPROX. DIMENSIONS (IN.): 120 X 63 X 75
*** IN GOOD RUNNING CONDITION, CAN BE INSPECTED UNDER POWER ***
*** FREE LOADING UNTO OPEN TRUCK, PRICE INCLUDES A 30 DAY RETURN PRIVILEGE ***
*** FOR MORE INFORMATION PLEASE CONTACT ALEX @ THANK YOU. ***
