Subject: Mazak multiplex 430 turning center

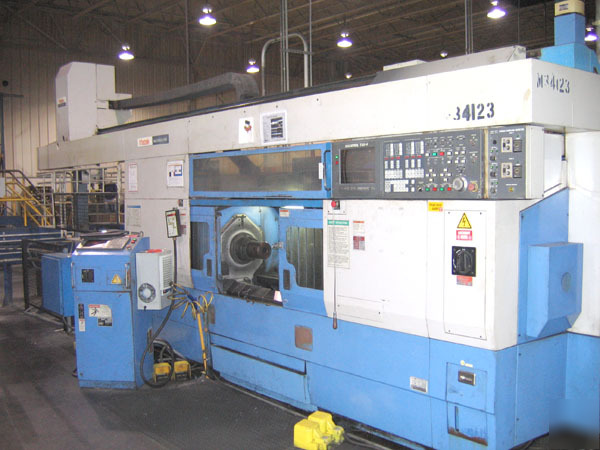

MAZAK MODEL MULTIPLEX 430 CNC TURNING CENTER*
Maximum Turning Diameter: 16.9"
Maximum Swing: 22"
X Axis Travel: 12.2"
Z Axis Travel: 23.8"
Maximum Bar Diameter: 3.0"
Thru Spindle Hole Diameter: 3.46"
Maximum Spindle Speed: 3000 RPM
Spindle Motor: 30HP
Spindle Nose: A 28
Numbers of Spindles: 2
Distance Between the Spindles: 57"
Number of Turrets: 2
Tool Positions per Turret: 12
EQUIPPED WITH:
Mazatrol T32-4 CNC Control
(2) Collet Chucks
Flex 32 GL200 Robot Loader
Mitsubishi CNC Robot Controller
Chip Conveyor
Coolant System
Approximate Overall Dimensions: 181" L-R x 142" F-B x 77" H
Approximate Weight: 25,000 Lbs.(HEIGHT IS WITHOUT ROBOT)
Serial Number: 84336 (New 1990)
* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
