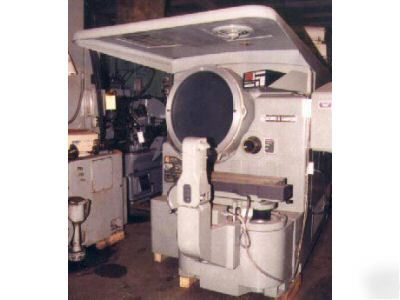

JONES & LAMSON 30inch COMPARATOR
S/N: E42147 Year: 1965 Model: Epic 30
Screen Diameter 30 in.
OA Floor Space W x L x H 58 x 121 x 80 in.
Screen Centerline to Floor 56 in.
Lens Centerline to Floor 44 in.
Work Table to floor with Helix Minimum 32 in. Maximum 40 in.
w/o Helix Minimum 30 in. Maximum 38 in.
Work table travel Horizontal 12 in. Vertical 9 in.
Helix Angle, L& R Hand 15 in.
Focus or Transverse measuring 3 in.
Throat Clearance – Maximum 30 in.
Focal plane to erector lens 13 in.
Focal plane to condensing lens 17 in.
Electrical Requirements 118V, 60 cy. single phase
Approx. weight 6000 lbs.
Lenses 10X; 20X, 31.25X; 50X; 62.5X; 100X
32 in Roll Table – 12 in Digital display to .0001 in or 12 in. with .0001 in, and one 3.000 in, and two 4.000 in. end measuring bars.
9 in Digital display to .0001 in or 9 in. 0001 in graduated measuring dial.
Transverse – 3 in digital to .0001 in.
Up-dated Solid State Drive Control System
New Style 400 Watt Bright Light System replaces Mercury Arc
