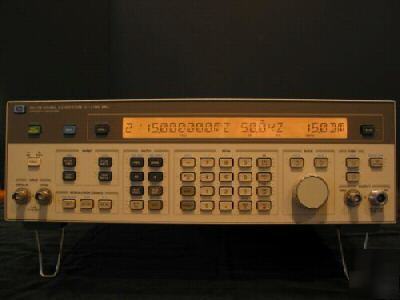

Modulation Modes AM, FM, PM, Pulse Sweep Modes: Start-stop, span, and phase continuous X-Axis Output: 0 to 10 Vdc, ±10% Y-Axis Output: TTL positive true for display blanking during retrace Resolution: 1 Hz, 0.1 Hz with special function Stability Standard: Aging rate: ±2 ppm/year Option 001: <10e-9/day aging rate after 8 days warmup Spectral Purity Absolute Accuracy: ±1 dB, output level >= -127 dBm Flatness: <= ±0.75 dB, +10 dBm output level SWR: <1.5:1, level<0 dBm; <2.0:1, level >=0 dBm Reverse Power Protection: 25W, from a 50 ohm source 50 Vdc Modulation Specifications Internal Modulation Oscillator Rates: 20 Hz to 100 kHz Frequency Resolution: 1% of setting Accuracy: 2% of setting Output Level Range: 0 to 3 V peak into 600 ohns Resolution: 4 mV Accuracy: ±(4% + 15 mV) within 1 second Distortion: <0.02%, 0.02 kHz to 15.8 kHz; <0.15%, >15.8 kHz Output Impedance: 600 ohms ±10% Remote Programming Specifications Interface: HP-IB (IEEE-488-1978) Power Requirements: 100, 120, 220, or 240 V; +5%, -10%; 48 to 440 Hz; 300 VA max Size: 425 mm W x 133 mm H x 617 mm D (16.75 in x 5.25 in x 24.3 in) This unit is in pristine shape and fully functional. It is guaranteed fully functional and will not be DOA. |
