HARDINGE-EMAG VL-5 VERTICAL CNC TURNING CENTER W/LIVE REVOLVING TOOLING
NUMBER OF STATIONS (PART PALLETS) 12
PART TO PART (LOAD/UNLOAD TIME) 4.5 - 6.5 SEC.
RAPID TRAVERSE RATE X AXIS 2362 IPM
RAPID TRAVERSE RATE Z AXIS 1181 IPM
TURRET CAPACITY (ALL CAN BE LIVE) 12 STATIONS
LIVE TOOL SPEEDS 300 - 6,000 RPM
APPROXIMATE DIMENSIONS 106" x 78" x 95"
MACHINE WEIGHT (APPROXIMATE) 15,500 LBS

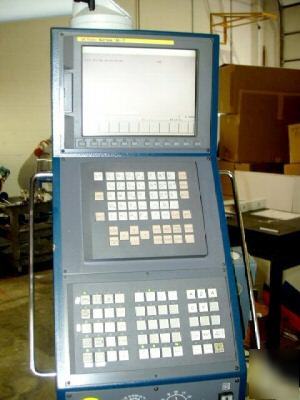

FANUC 18iT CNC CONTROL WITH 10" FULL COLOR LCD
RS-232C PORT INTERFACE FOR DNC OPERATION
10" HYDRAULIC CHUCK, MISCELLANEOUS CHUCK JAWS
AUTO PART LOADING AND UNLOADING FULLY AUTOMATIC
STANDARD COOLANT SYSTEM WITH TANK & PUMP
REAR DISCHARGE LIFT-UP CHIP CONVEYOR WITH CART
FULLY ENCLOSED GUARDING, (1) LIVE TOOL HOLDER
18 ASSORTED TOOL HOLDERS, ALL AVAILABLE MANAULS
*****MACHINES HAVE LITERALLY NO USE, LIKE NEW*****
*****MACHINE MANUFACTURED 2001, INSTALLED 3/04*****
LOCATION: PHILADELPHIA, PA 19135
HARDINGE VL5 Catalog Information:
The built-in automation design incorporates a closed-loop parts conveyor that encircles the machine to position workpieces at the pickup station for loading and unloading by the vertical spindle. Very fast spindle traverse rates allow the spindle to move both vertically and horizontally to pick the workpiece from the conveyor and traverse into machining position, returning the finished workpiece to the conveyor to complete the cycle. Spindle Z-axis traverse rate is 1,181 ipm and X-axis rate is 2,362 ipm. Part-to-part time is an impressive 4.5 to 6.5 seconds.
The rigid disc-type, 12-station VDI 40 turret features shortest-path, bi-directional indexing. Live tooling is offered as an option on all stations of the turret, as well as C-axis on the spindle. The spindle motor, turret and switch gear cabinet are maintained at a constant temperature by a refrigerated fluid supply system for consistent machining. Slide guideways include enclosed linear scales.
Main features of the VL5 machine include: 36-hp "wraparound-design" spindle with 4,500-rpm/2236 ft-lb torque rating; storage capacity for 28 workpieces (3.3" Dia), 14 Workpieces (6.3" Dia) or 12 workpieces (8.6" Dia.); and 8- or 10-inch jaw chuck capacity. The integral "wraparound" spindle configuration eliminates the need for pulleys, spindle belts and mounting plates. This, in turn, allows for optimum power for heavy/deep cuts, better acceleration/deceleration, and minimized vibration for superior part finishes and close tolerances.
A GE Fanuc 21-iT CNC control is standard; an 18i-T control is included on machines equipped with live tooling and C-axis.
* Powerful 29.9-hp/227-kW spindle drive system
* 4,500-rpm spindle speed and 223 ft-lb torque rating
* High-speed spindle option of 5,500-rpm
* Automatic circular parts conveyor accommodates up to 28 workpieces (with standard prisms)
* Very fast traverse rates for reduced non-cut time
2,362 ipm / 60 m/min on X axis
1,181 ipm / 30 m/min on Z axis
* Fast 4.5 to 6.5 second part-to-part time
* Powerful live tooling option available on all turret stations
* Spindle motor, turret and switch gear cabinet are maintained at a constant temperature by the refrigerated supply system
* Guide rails, energy supply, turret housing and pickup station located outside the machining area
* Linear scales on the X and Z axes
* Crash-safe part pickup system
Options include C-axis/live tooling, air through spindle, MPG (manual pulse generator), tool life management, 3-position stack light, power jaw chucks and turret tooling
