Subject: Giddings & lewis hr winslowmatic drill point grinder
GIDDINGS & LEWIS MODEL HR WINSLOWMATIC AUTOMATIC DRILL POINT GRINDER
Serial No. 947-00126-85 New 1985

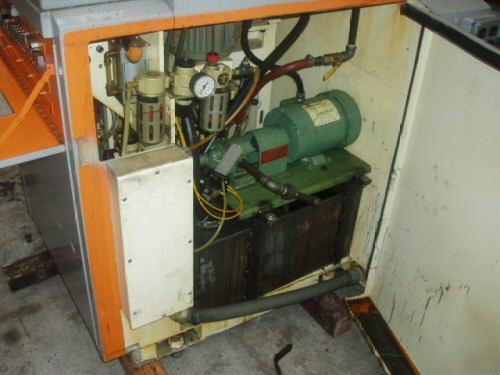

Motor Driven With 1HP, 3 Phase, 60 Cycle, AC Spindle Drive. 1/3HP Workhead Drive. 1/4HP Coolant. Complete Electrical Controls.
For Helical, Bickford, Racon, and Conventional Points In A Single Operation, Also Splits Points and Pilot Diameter and Countersink Angle on Step Drills.
Cam Actuated Motion For Drill Point Geometry. Diamond Wheel Dresser. Cycle Counter. Set Up Charts For All Cycle Information. Automatic Flood Coolant. Selector Mode Knobs. Digital Counters. Grind Selector Knobs. Drill Splitter and Web Thinning Attachment. Assorted Index Bushing Plates, Drill Holders and Cams.
Convectional Point 1/16" x 1.5"
Helical Point 1/16" x 1.5"
Racon Point 1/8" - 1"
Bickford Point 1/8" - 1"
Split Point (By 2 Operations) 1/16" x 1/2"
Grinding Wheel (Horizontal Mount) 12" x 3/4" x 5"
Production Rate Up To Drills Per Hour 120
Point Angles 60-160°
Approximate Weight 1,800 lbs
