Subject: Gao 4516U 100K-16BIT-16CH portable data acquisition

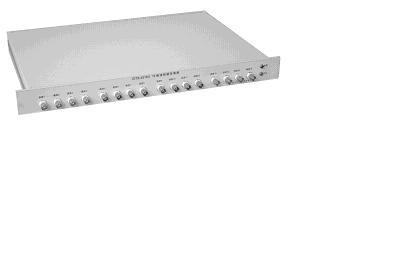

The data acquisition board is not only difficult to install, but also is easy to be interrupted by internal surroundings of cabinet. GAO 4516U 100k-16bit-16CH Portable Data Acquisition Instrument can easily achieve multi-point data acquisition with low cost and high reliability.
* Auto calibrate zero and channel gain
* The acquisition depth of each channel up to 1M samples
* USB2.0 interface: High transfer rate
* Easy to install and configure, hot-pluggable, automatically configure by system
* Integrated with 16-channel parallel synchronous acquisition, and expanded to 256 full-synchronized channels
* A/D resolution up to 16bits
* Parallel data acquisition for more channels
* Time-phase-sensitive acquisition
* Sampling Rate (sps): 1k～100k
* Input channel: Parallel synchronous 16 channels
* Input impedance: 1MΩ//25pF
* Phase difference between channels: <1(10kHz)
* Analog input: 100mV to 100V
* Bandwidth of input signal:
DC: 0～30kHz AC: 0.2～30kHz
* Memory depth of each channel (samples): 1M/CH (extension to 2M/CH)
* Triggering mode: manual triggering, external triggering and internal triggering； In which, internal triggering can be divided into triggering of rising edge and falling edge with adjustable triggering level.
* Interface: USB interface, hot plug, plug-and-play, simple configuration
* Volume: 191U standard chassis
* Pre-panel: power switch and indicator light which display acquisition state of channels
* Post-panel: provides cascading interface of instrument
* Provide DEMO source code under common development platforms and technical support for development
* Operating Temperature: 0℃ to 40℃
* Storage Temperature: -40℃ to 60℃
* Relative Humidity: 40℃ 20 to 90% (no condensation)
You must have a return authorization number to return your product. Please contact to obtain an authorization number, which shall be valid for 14 days after issued.
This product is covered by a warranty of 12 months.
