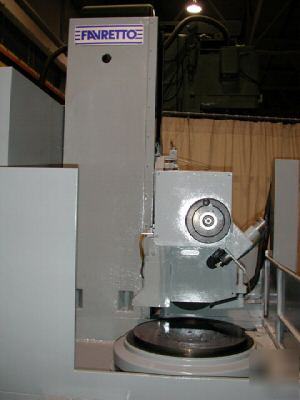

(1) USED - 20" FAVRETTO MODEL MR50 HORIZONTAL SPINDLE ROTARY SURFACE GRINDER* Serial No. 03247 New - 1987 15 HP Main Spindle Drive Motor and Controls. M.D. Hydraulic System with Heat Exchanger. M.D. Traverse. Motor Driven Lubrication System. Motor Driven Diameter Magnetic Chuck, Overall 20" Swing Inside Guard 28.75" Wheel Size 16" x 3" x 4" Distance Top of Chuck to Centerline Wheel - Maximum 33.58" Maximum Table Load (Capacity) 992 Lbs. Wheel Head Ram Travel 18" Table Speeds - Variable 15 - 120 RPM Wheel Speed 1,450 RPM Power Feeds Inf. Variable Spindle Motor 15 HP 440/3/60 Approximate Overall Dimensions 73"L x 47"W x 102"H Approximate Weight 10,150 Lbs. 15 Degree Swiveling Cross Rail For Concave and Convex Grinding. Electro Magnetic Chuck with Technomagnete Variable Remote Control Neutrifier. Variable Rate Infeed. Fine Coarse Feed Controls, Compensation Knob Dial. Table Speed Controls. Diamond Dresser Manually Activated. *Preliminary Specifications Subject to Verification. |
