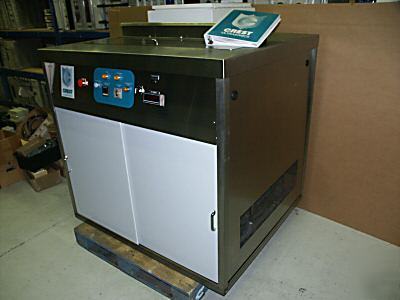

Crest 02-031846 Ultrasonic Precision Cleaning System Station. It Comes With a Detailed, Installation, Operation, Maintenance, Service, Troubleshooting Manual. Degassing - (The Removal of Unwanted air From the Liquid.) As the Cavities Form, They Fill With Unwanted Air Bubbles That Resist Collapse and Tend to Remain Syspended in the Liquid. This is Usually Undesireble in Ultrasonic Cleaning Because the Bubbles Act as "Shock Absorbers" and Reduce the Scrubbing Effect. It is Possible to Reduce Unwanted Air in the Cleaning Solution by Modulating the Sound Energy to Permit Adjacent Bubbles to Coalesce, Float to the Surface, and Escape. This Modulation Must be Matched to the Particular Process and Effects Desired. Crest Ultrasonic Cleaning Systems Exclusively Feature "Simultaneous Multi-frequency" and Two Modes of Gassing Modulation, Thus Offering Maximum Versatility in Degassing. Low Frequencies - (Electrical Frequency Affects Cleaning Efficiency by Determining the Cavity Size.) Low Frequencies Such as 25kHz Generate Large, But Relatively Few, Cavities With High Cleaning Power. High Frequencies Generate a Great Number of Small Cavities With Good Penetrating Capability. The Selection of the Correct Frequency Varies With Each Cleaning Application. This Unit is Designed Eliminate the Difficulties Traditionally Associated With the Selection of Proper Frequency Ranges for Ultrasonic Cleaning Through the Patented "Simultaneous Multi-frequency" Design and Uniform Energy Distribution. Generator - Crest's GENESIS Plug-in Generator Module is Specifically Designed to Power Ultrasonic Cleaning. This Generator Module is Mounted Within the Inernal Compartment of the Console. Transducers - (Convert Electrical Energy Into Acoustic (sound) Energy. Crest's Exclusive VIBRA-BAR Transducer Design is Ideally Engineered to Provide the Reliable, Constant Compression Levels That are Essential to the Succes of Ultrasonic Cleaning. Thank - This Thank's Design is Ideally Engineered to Give Optimum Performance in the Process of Ultrasonic Cleaning. All Items sell with 5 days right of return, and 15 days GUARANTEE on all parts and labor. If in order to comply with our guarantee, we need to refund your money, you will get a FULL refund for the price of the unit... If you need to make use of the 15 days Guarantee - We will fix, or replace, your unit. In case every attempt to fix or replace it fails, we’ll refund your money. Be sure to add me to your favorites list! |
