Subject: Axial inserter universal 6241D vcd/sequencer

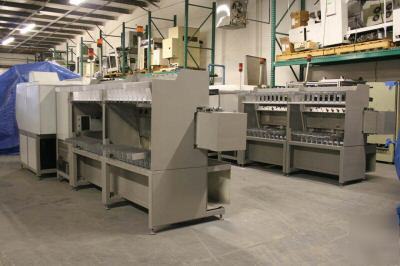

UNIVERSAL INSTRUMENTS 6241D VCD INSERTER
1. 40 STATIONS. HAVE EXTRA MODULES AVAILABLE UP TO 100 STATIONS
2. SINGLE BOARD TRANSFER CONFIGURATION. WE CAN CONVERT TO STAND ALONE
3. REFUBISHED - GREAT WORKING CONDITION
4. 4 MACHINES AVAILABLE ALL CE MARKED
5. ALSO AVAILABLE RADIAL INSERTERS AND 6242E VCD/SEQUENCER
Insertion span: 0.300" - 0.950"
Accuracy: 0.002" (+/- 0.051mm)
Repeatability: 0.001" (+/- 0.025mm)
Insertion Head Type: Servo-driven variable center distance
Programmable Z-span in +/- 0.001" increments
Clinch Angle: adjustable inwards from 45 to 90 degrees
Component Input: Ammo packs and/or reels
Number of inputs: 20 to 220 in 20 station increments
