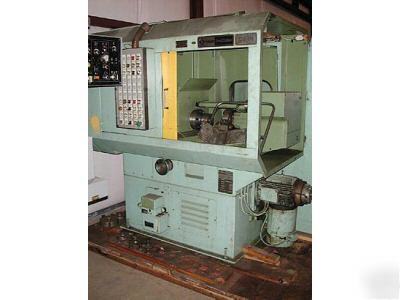

#7451 - wera model rsm-150 profilator

UpUp


Subject: #7451 - wera model rsm-150 profilator
Spindle bore 1.570"dia./2.360"dia.
Max. chucking dia. when using collets 3.150"
Max. chucking length through bore 23.620"dia. x 1.970"dia.
Internal chucking min. .394", max. 3.940"dia.
Max. hydraulic chuck pressure 294 PSI
Machine setting infinitely adjustable .001" graduations
Spline profile - 6 flute max. 2.000"
Involute spline profile max. dia. 3.000", module 2.5
Longest supported length using tailstock 10"
Spindle nose taper for chuck DIN 55021 size 6
Hole circle dia. for chuck 5.251"; 4 x 90 deg. metric 12 thread & 5.251"; 3 x 120 deg. metric 12 thread and 5.905"; 6 x 60 deg. metric 12 thread
Dia. of cutter head R system .787" to 4.000" dia. max.
R-Cutter head speeds RPM 740 - 2100 RPM
Feed per revolution .003" - .031"
Max. hydraulic pump pressure 1,028 PSI
Hydraulic pump capacity 5.26 gal/min.
Special ratio from 32:1 to 96:1
M-Cutter head dia. Standard 4" to 8" dia.
Incline angle for cutter heads 0 deg. - Standard M system +/- 20, inclinable M & R systems
Standard M system max. 2.360"dia. inclinable M system
Standard ratios M system standard and inclinable 2:1
Special ratios 3:1 and 5:1 standard M system and inclinable M system by change gears
Floor space required 7' x 8.5'
Hydraulic pump motor 5.5 HP,1420 RPM/220 V, 60 Hz
Spindle drive motor 18 HP, 2500 RPM max.
Main voltage 220/440 V, 60 cycles
