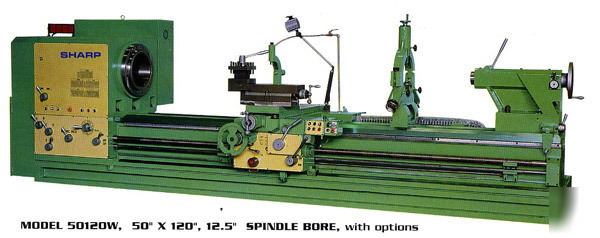

50" ENGINE LATHE, Sharp 5060W Big Hole 30 HP,
50" ENGINE LATHE, Sharp 5060W Big Hole 30 HP,
- Swing 35" - 70", center distance 60" - 200", spindle bore 6", 9",
& 12.5" (see our other listings for the full range of sizes)
- 18 spindle speeds, optional variable speed with 4 step changes
- Electromagnetic spindle brake
- Machine bed and base made out of one piece casting
- 6 way lever control of feed and rapid traverse for carriage, cross
- 240 threads for inch, metric, module and diametral pitch by
- Additional hardened and ground way for support of apron
- Tailstock has Hi-Low gear for quill feed, also equipped with
"tang" and built-in stopper to help in heavy drilling
Swing over gap, width: 69", 24"
Spindle taper/bore: A2-11 (6.02") is standard, or A2-15 (9.05")
and A2-20 (12.51") are optional at extra cost
Spindle Speeds (18): 6 - 750 RPM
Vari speed (optional): 18 - 1,000 RPM, 16 - 750 RPM, 12 - 400 RPM
Longitudinal feeds: 0.0018 - 0.1 inch per revolution
Cross feeds: 0.0009" - 0.05 inch per revolution
Long. rapid feeds: 80 inch per minute
Cross rapid feeds: 40 inch per minute
Threads: metric: 1-56(60), inch: 1/2-28(60), module: 0.25-14(60), DP: 2-112 (60)
Leadscrew pitch: 2 teeth per inch
Net weight (approximately): 18,300 lbs
Spindle sleeve, coolant system with pump & hose, halogen work
light, dead centers (2), chip guard on compound, indexable (8
positions) 4 way toolpost, toolbox & tools.
OPTIONAL EQUIPMENT (Call for prices)
4-Jaw chuck, face plate, steady rest, rear chuck adaptor, taper
attachment, variable spindle speeds (4 steps), semi-automatic
threading and turning cycle, & constant surface speed.
Machine Location: HARRISON, NJ
