Subject: 36" blanchard vertical-spindle rotary surface grinder

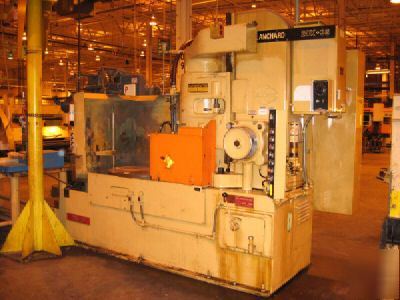

36" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER
New 1982, Serial No 15606, Model 20K36
Vertical Spindle Machine Design
36" Diameter Fine Line Magnetic Chuck w/Neutrifier
Extended Vertical Range w/24" Height Under Wheel
22" Segmented Grinding Wheel (5 Segments)
Flame Hardened Steel Base Ways w/Auto Lube To Base
Continuous Reading Caliper Attachment
Hand Operated Trabon Lubrication System
Magnetic Chuck, Diameter............... 36"
Swing Between Coolant-Guards........... 38"
Magnetic Chuck Work Load Capacity...... 3000 LBS
Height Under Grinding Wheel, Maximum... 24"
Grinding Wheel Diameter, Maximum....... 20"
Grinding Wheel Width, Maximum.......... 5"
Grinding Wheel Hole Diameter........... 16.5"
(6) Chuck Speeds, Range................ 6 to 33 RPM
Power Down Feeds, Range................ .004 to .080 IPM
Spindle Motor, Horsepower.............. 50 HP
Chuck Motor, Horsepower................ 2 HP
Electrical System...................... 220-440/3/60
Floor Space Required, W x D............ 11'8" x 8'4"
Overall Height......................... 10'10"
Weight, Approximately.................. 15000 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $49,500.00
All machines/equipment subject to prior sale.
