Subject: #320TF17 kearney&trecker "twin-screw" plain horiz mill

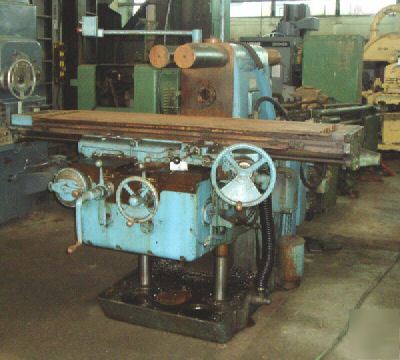

#320TF17 KEARNEY & TRECKER "TWIN-SCREW" PLAIN
New 1962, Serial No 4/9281, Model 320TF17,
Twin Elevating Screws for Table
Table Dimensions (Overall), W x L....... 17" x 72"
Table Longitudinal Travel (X-Axis)...... 34"
Saddle In-Out Cross Travel (Z-Axis)..... 12"
Knee Vertical Travel (Y-Axis)........... 18"
Spindle Taper........................... #50 NSTD
(24) Spindle Speeds, Range.............. 15 to 1500 RPM
(32) Longitudinal and Cross Feeds....... 3/8 to 90 IPM
(32) Vertical Feeds, Range.............. 1/8 to 30 IPM
Power Rapid Traverse, Long & Cross...... 150 IPM
Power Rapid Traverse, Vertical.......... 50 IPM
Spindle Motor, Horsepower............... 20 HP
Feed Motor, Horsepower.................. 3 HP
Weight, Approximately................... 11200 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $4,950.00
Note: RUNNING 440 VOLTS. RUNS FINE, EVERYTHING WORKS.
All machines/equipment subject to prior sale.
