Subject: 27"/47" x 114" binns & berry heavy duty gap bed lathe

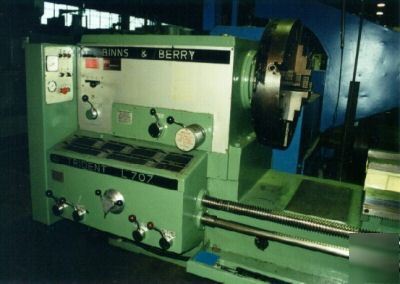

27"/47" X 114" BINNS & BERRY HEAVY DUTY GAP BED ENGINE LATHE
MODEL TRIDENT #L707, MANUFACTURED 1980
SWING OVER SADDLE/CROSS SLIDE - 21.6"
DISTANCE BETWEEN CENTERS - 114"
SPINDLE SPEEDS ( 3 RANGES ) - 0 - 1250 RPM
FEEDS, LONGITUDINAL - ( 70 ) - .0007 TO .07 IPR
FEEDS, CROSS - ( 70 ) - .0005 TO .05 IPR
THREADS, INCH - ( 90 ) - .25 TO 112 TPI
THREADS, METRIC - ( 80 ) - .50 TO 112 MM
26" 4 JAW CHUCK, 3 POINT ROLLER STEADY REST
4 WAY TOOL POST, 4 WAY RAPID TRAVERSE
APPROX. WEIGHT: 14700 LBS., APPROX. DIMENSIONS (IN.): 204 X 60 X 64
*** MACHINE IN GOOD RUNNING CONDITION, CAN BE INSPECTED UNDER POWER ***
*** FREE LOADING UNTO OPEN TRUCK, PRICE INCLUDES 30 DAY RETURN PRIVILEGE ***
