Subject: 18" x 18" doall vertical bandsaw, model #tf-18A

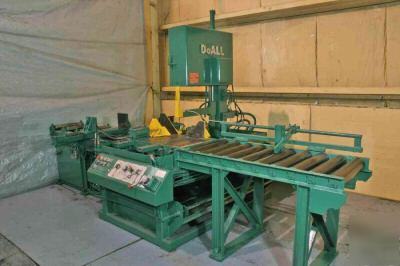

18" X 18" DOALL VERTICAL BANDSAW
SERIAL ................................ 322-77145
MODEL ................................. TF-18A
YEAR NEW .............................. 1977
CAPACITY .............................. 19´´ X 18´´
CAPACITY AT 45 DEGREES ................ 18´´ X 12´´
HEAD TILT ............................. 45 DEGREES R OR L
INPUT TABLE ........................... 72´´ WITH SHUTTLE VISE
OUTPUT TABLE .......................... 60´´
BLADE SPEEDS, INFINITELY VARIABLE ..... 40 TO 300 FPM
BLADE STROKE .......................... 18´´
LENGTH OF BLADE ....................... 180´´
WIDTH OF BLADE ........................ 1´´
MAXIMUM VISE OPENING .................. 18´´
BLADE STROKE .......................... 18´´
HYDRAULIC VISE ........................ YES
HYDRAULIC STOCK FEED .................. YES
COOLANT ............................... YES
MOTOR ................................. 5 HORSEPOWER
CALL US AT TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!!
