16" ENGINE LATHE, Birmingham YCL-1640 7.5 HP,
16" ENGINE LATHE, Birmingham YCL-1640 7.5 HP,
New "Birmingham" Precision High Speed Engine Lathe
Model: YCL-1640 w/Removable Gap Block

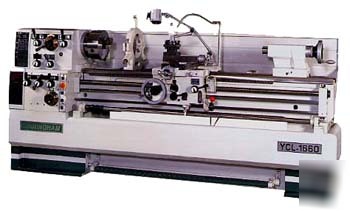

Note: the photo shows the 60" centers model
This high speed precision lathe comes with many features including
one-piece cast iron body, no change gears required, 60 kinds of
inch threads from 112 -2 TPI, fine grain high tensile cast iron bed.
Main spindle, bedways, gears and all shafts are hardened and precision
ground. A valuable addition to any machine shop.
Effective Length in Gap: 9-1/2"
Diameter of Spindle Thru Bore: 2.28"
Spindle Speeds: 25 - 2,000 RPM, 12 Steps
Metric Threads: 0.1 - 7 mm, 34 Kinds
Inch Threads: 4 - 112 - TPI, 60 Kinds
Diameter of Tailstock Quill: 2.3"
Taper of Tailstock Quill Center: MT#4
Max. Travel of Tailstock Quill: 4.8"
One Piece Stand with Chip Tray
Inch/metric Gear Box, (no change gear required)
Optional Equipment (call for pricing):
Digital Readouts - Newall C80 or Sargon Gold Standard
5-C Hand Lever Type Collet Closer "JFK" USA
Machine Location: HARRISON, NJ
