16" ENGINE LATHE, Birmingham DLC-1660 10 HP,
16" ENGINE LATHE, Birmingham DLC-1660 10 HP,
New "Birmingham" Precision High Speed Engine Lathe
Model: DLC-1660 w/Removable Gap Block

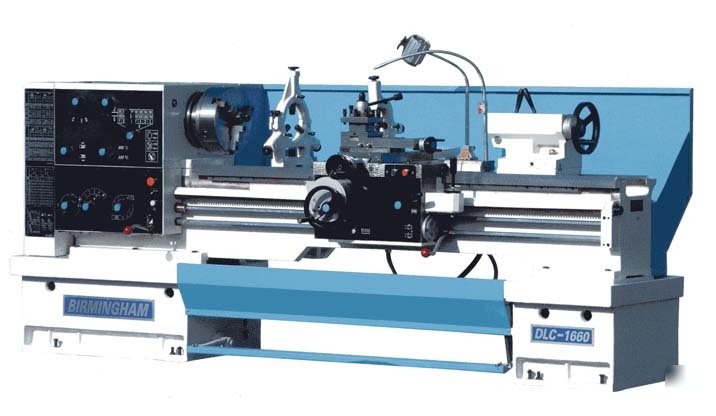

Note: the photo shows this model
10 HP motor delivers power thru all spindle speeds
Spindle gears, shafts and bearings are lubricated by pumped bath of oil
Induction hardened and ground bedways
D1-8 Camlock spindle with 4-1/8" spindle bore
16 Spindle speeds, 26 - 1,700 RPM
Rapid power traverse to carriage and cross slide
Multiple disc clutch for efficient spindle starting and reversing
Spindle nose type (Camlock): D1-8
Spindle speed range: 26 - 1,700 RPM
Spindle center to bedway: 8-5/8"
Threads per inch (No.) range (TPI): (42) 7/16 - 80
Metric threads (No.) range (mm): (37) 0.5 - 80
Module threads (No.) range (mm): (32) 0.25 - 40
Diametral threads (No.) range (DP): (42) 7/8 - 160
Long. feeds (No.) range (in/rev): (45) 0.0017 - 0.058
Cross feeds (No.) range (in/rev): (45) 0.0009 - 0.029
Leadscrew diameter (in): 1-9/16"
Main drive: 10 hp, 220/440V 3 ph
Maximum workpiece weight: 1,100 lbs.
Overall Dimensions: 122" L x 47" W x 54" H
12" 3 Jaw Chuck with reversible jaws
Steady rest capacity 1-1/8 - 6-1/4"
Follow rest capacity 3/4" - 3-1/8"
Coolant System w/Full Length Splash Guard
Optional Equipment (call for pricing):
12" Cap. Larger steady rest with roller jaws
5C Hand lever type collet closer "JFK" USA
Machine Location: HARRISON, NJ
