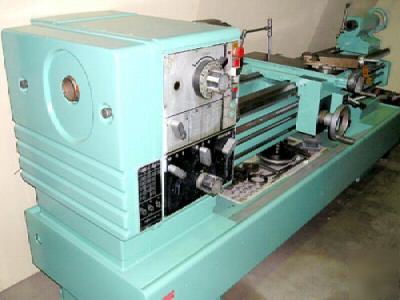

16-1/2" x 60" Harrison, No. M400, 40-2000 RPM, Inch/mm, 10 HP, 1979 Our stock number: 16730 MODEL...................................M400 SERIAL NUMBER...........................403268-2908 Year: 1979 Swing Over Bed and Saddle Wings............16-1/2" Swing Over Cross Slide.....................10" Bar Capacity Thru Spindle..................2-9/16" Distance Between Centers...................60" Spindle Bore...............................2-9/16" Spindle Nose...............................8" D1 Camlock Spindle Speeds.............................(18) 40 to 2000 RPM Threads, U.S. .............................(38) 2 to 72 Threads, Metric............................(35) .2 to 14 Module Pitches, MM.........................35.2 to 3.5 Longitudinal Feeds....................... .0015" to .040" Cross Feeds.............................. .00075" to .020" Tailstock Taper............................5 M.T. 10 HP Main Motor, 1750 RPM 230/460/60/3 Approximate Weight.........................4300 Lbs. All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS. All items are offered locally and could be sold previous to end of store listing. |
