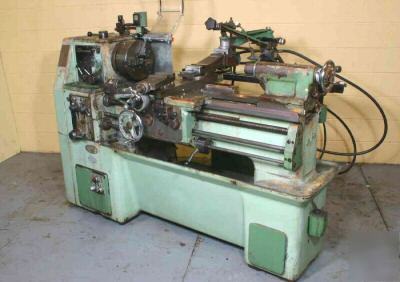

14" X 32" OKUMA ENGINE LATHE WITH TRU TRACE TRACER SERIAL ................................... 4801-1926 MODEL .................................... LK SWING OVER WAYS .......................... 14´´ SWING OVER CROSS SLIDE ................... 7-1/2´´ SWING IN GAP ............................. 16-1/2´´ DISTANCE BETWEEN CENTERS ................. 32´´ SPINDLE SPEEDS ........................... (12) 50 TO 2000 RPM LONGITUDINAL FEEDS ....................... (32) .0018 TO .0276 IPR CROSS FEEDS .............................. (32) .0009 TO .0134 IPR INCH THREADS ............................. 4 TO 56 TPI METRIC THREADS ........................... .5 TO 7 MM PITCH DIAMETER OF 3-JAW CHUCK .................. 10´´ DIAMETER OF SPINDLE HOLE ................. 1´´ CARRIAGE STOP ............................ YES HARD WAYS ................................ YES CHIP PAN ................................. YES SPINDLE MOTOR, HORSEPOWER ................ 5 EQUIPPED WITH TRU-TRACE SINGLE AXIS HYDRAULIC TRACER: TRACER SERIAL ............................ 2-1508 TRACER MODEL ............................. 6107-02 CALL US AT TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!! |
