Subject: 14" jones & lamson #PC14A optical comparator #23896

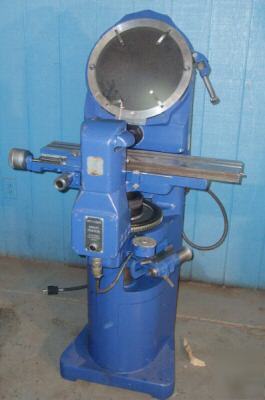

14" JONES & LAMSON #PC14A OPTICAL COMPARATOR
New 1980, Serial No. E46534, Model PC14A
Screen Diameter........................ 14"
Table Dimensions, W x L................ 6" x 30"
Table Horizontal Travel, X-Axis........ 8"
Table Vertical Travel, Y-Axis.......... 4"
Measuring Range, Horizontal............ 8"
Measuring Range, Vertical.............. 4"
Measuring Range, Angular............... +/- 180-DEGREES
Work Diameter Capacity on Centers...... 5"
Work Length Capacity on Centers........ 21.625"
Lens-Centerline to Table, Minimum...... 1.25"
Lens-Centerline to Table, Maximum...... 5.25"
Helix Rotation, Left & Right........... 11-DEGREES
Floor Space Required, W x D............ 1'9" x 3'4"
Weight, Approximately.................. 900 LBS
CONDITION: Appears to be in Very Good Condition.
PRICE: F.O.B. OUR WAREHOUSE........... $2,950.00
All machines/equipment subject to prior sale.
