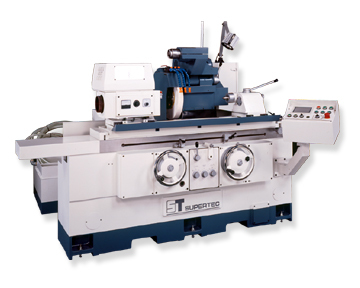

12.6" OD GRINDER, Supertec G32P-150H Manual I
12.6" OD GRINDER, Supertec G32P-150H Manual I
12.6" x 60" MODEL G32P-150H w/Manual Infeed
- Heavily ribbed box-type base is made of Meehanite castings,
providing excellent rigidity to ensure machine stability.
- Hydraulics, coolant and lubrication systems are separated
from machine to eliminate vibration and dissipate heat.
- Sturdy rigid-designed workhead is electronically controlled
giving variable spindle speeds ranging from 30-350RPM.
Workhead swivels 90CCW to 90CW for various grinding operations.
- A dual oil seal and cover prevents coolant seepage into the workhead.
- The design of the tailstock is both rigid and robust. Housed in
a cast body, the hardened nitralloy steel sleeve is designed to
- Optional hydraulic tailstock with foot pedal is available for
easy loading and unloading of parts.
- Cartridge type wheel spindle is equipped with four super precision
class 7 (ABEC) bearings incorporated with 7 1/2 HP spindle motor
- One V and one flat hand-scraped guideways are Turcite coated and
incorporated with an automatic lubrication system and micro-stepping
motor. Smooth movement of the wheelhead delivers longer way life
with superior positioning accuracy and repeatability.
- A special upper slide design adds 7 (180mm) in total wheelhead
travel and increases grinding capacity.
- Rigid table with box-type structure travels on a cushion of oil
with no metal-to-metal contact.Table is fully supported in the full
- A swiveling table dial indicator enables rapid cylindricity
corrections and taper grinding applications.
- Slideways, leadscrews are continuously lubricated by an auto-lube
system to ensure long service life and maintain maximum accuracy.
- The hinged, swing-down internal grinding attachment (optional)
swings down into working position easily and quickly. A patented
locking device adds safety as it prevents the ID attachment from
Max. Load Held Between Centers: 330 lbs
Handwheel per division: 0.0002
Handwheel per revolution: 0.08
Top slide sliding travel: 7
Automatic rapid travel: 1.75
Diameter x Width x Bore: 16 x 2 x 5
Traverse speed (infi variable): 1.2~275/min
Handwheel per revolution: 0.39
Center taper: MT4 (option MT5, 5C)
Spindle speed (infi variable): 30~350 rpm
Center taper: MT4 (option MT5)
Spindle speed:G32P/G38P 12000/18000 rpm or 25000 rpm
Max. grinding bore: 4.33 or 2.17
Max. chucking length: 8~12.4
Wheel spindle motor: 7.5HP(4P)
Internal grinding motor: 2HP(2P)
Packing dimension: 170x90x79(L x W x H)
- Diamond dresser(fixed on table)
- Operation manual with parts list
COOLANT SYSTEMS (upgrades from the standard coolant system)
- Coolant system w/mag. separator & paper filter(60L/min,140L)
- Coolant system w/mag. separator (40L/min,108L)
- Coolant system w/paper filter (60L/min,140L)
- 3-Jaw scroll chuck (6") (order with 6 back plate)
- 3-Jaw scroll chuck (8") (order with 8 back plate)
- 4-Jaw independent chuck (8") (order with 8 back plate)
- 4-Jaw independent chuck (6") (order with 6 back plate)
- Royal manual lever type 5C collet closer
- Royal air-operated 5C collet closer (requires air valve)
- Kit w/hand-operated valve for air 5C
- Kit w/foot-operated valve for air 5C
- Lyndex 5C collets (various sets from 3/64 to 1-1/8)
- Overhead parallel dresser with auto compensation
- Hydraulic parallel dressing attachment
- Internal grinding attachment (12000/18000 rpm)
- Internal grinding attachment (25000 rpm)
- Chuck for ID attachment (Arbor type, ER-16)
- Shoulder grinding attachment
- 2-Point steady rest (various sizes)
- 3-Point steady rest (various sizes)
- Two axis (X & Z axis) digital readouts
- One axis (wheelhead) digital readouts
**The D.R.O. display has resolution selections of 0.0002
or 0.0005 for Z-axis, & 0.00002, 0.00005, 0.0001, or 0.0005
- 0.000050 Diameter Micro-infeed attachment
- Balancing stand (straight type)
- Balancing stand (roller type, 20)
- Hydraulic tailstock w/foot pedal
- MT5 Taper on workhead & tailstock
- Variable spindle speeds for wheelhead
- Variable spindle speeds for I.D. attachment
Machine Location: HARRISON, NJ
