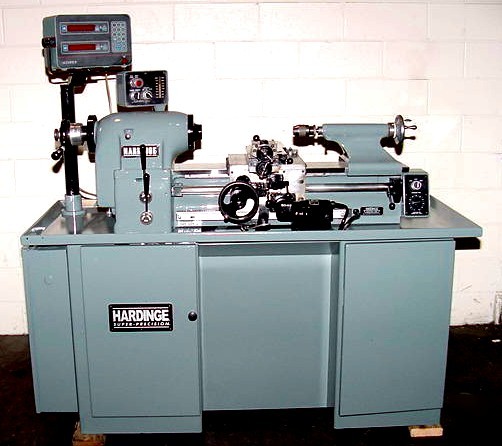

11" PRECISION ENGINE LATHE, Hardinge HLV-TFB
11" PRECISION ENGINE LATHE, Hardinge HLV-TFB
HARDINGE PRECISION TOOLROOM LATHE
MODEL: HLV-TFB, NEW: 1991, S/N: HLV-H-14438T
SPINDLE CONSTRUCTION ........ HARDINGE SUPER-PRECISION
SPINDLE NOSE ........................ HARDINGE TAPERED
INF. VARIABLE SPINDLE SPEEDS ......... 125 TO 3000 RPM
HOLE THROUGH SPINDLE .......................... 1-1/4"
W/ROUND 5C COLLETS ........................... 1-1/6
W/HEXAGON 5C COLLETS .......................... 7/8"
W/SQUARE 5C COLLETS ........................... 3/4"
W/STEP CHUCKS ........................ 1-1/16" TO 6"
W/JAW CHUCKS .................................... 5"
W/EXPANDING COLLETS ............................. 3"
SWING OVER BED ................................... 11"
SWING OVER CARRIAGE ............................... 9"
SWING OVER CROSS SLIDE ............................ 6"
DISTANCE BETWEEN CENTERS ......................... 18"
COMPOUND SLIDE TRAVEL ............................. 3"
CARRIAGE POWER FEED RANGE ............ 5/16" TO 7" IPM
CROSS SLIDE POWER FEED RANGE ......... 3/16" TO 4" IPM
TAILSTOCK SPINDLE DIAMETER .................... 1-3/8"
TAILSTOCK SPINDLE TRAVEL ...................... 3-3/4"
TAILSTOCK SPINDLE TAPER ........................ #2 MT
APPROX. DIMENSIONS ... LxWxH ......... 65" x 28" x 58"
APPROX. WEIGHT ............................ 1,500 LBS.
ACURITE III TWO AXIS DIGITAL READOUT
JACOBS DRILL CHUCK FOR TAILSTOCK
1 / .5 HORSEPOWER TWO SPEED MAIN DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
Machine Location: HARRISON, NJ
