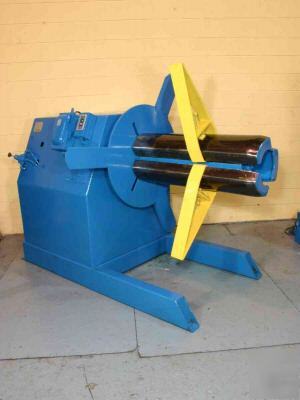

10,000 LBS X 42" AMERICAN HYDRAULIC EXPANSION COIL REEL
SERIAL ..................................... 4204
MODEL ...................................... 1000
YEAR NEW ................................... 1973
CAPACITY ................................... 10,000 LBS
MAXIMUM COIL WIDTH ......................... 42"
COIL INSIDE DIAMETER ....................... 15-1/2" TO 20-1/2" MAX
COIL OUTSIDE DIAMETER ...................... 60"
NUMBER OF KEEPERS .......................... 3
HYDRAULIC EXPANSION ........................ YES
HYDRAULIC MANDREL EXPANSION ................ YES
PNEUMATIC BRAKE ............................ YES
DIAMETER OF BACKER PLATE ................... 72"
EXPANSION MOTOR ............................ 5 HORSEPOWER
