Subject: Coherent cr-599 dye laser and control

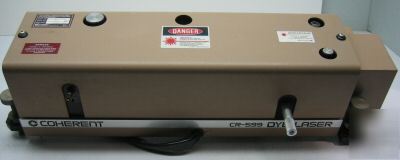

COHERENT CR-599 DYE LASER AND CONTROL
THIS DYE LASER HAS A POWER SOURCE OF 208-240 VAC, 50/60 HZ, 20A,10. THE REFERENCE CAVITY ON THE DYE LASER IS NOT AVAILABLE. THE PART NUMBER IS 0406-239. THE SERIAL NUMBER IS 1124.
The controller is a model 599-21. Part number 0406-239. Serial number is 1124.
ON THE LASER CONTROL THE DISPLAY SETTINGS ARE: REFERENCE CAVITY, LASER POWER, INTERFEROMETER, AND EXTERNAL. THE OPERATING MODE IS LOCK, FREE RUN AND CALIBRATE.
THE SCAN CONTROL IS EXTERNAL, MANUAL INTERNAL AND SINGLE. THE SCAN TIME IS 25 SEC, 2.5 SEC AND .25 SEC. IT ALSO HAS X 25 AND X 1.
THE SOURCE BEAM IS J40 AND THE NEUTALIZER IS J39.
