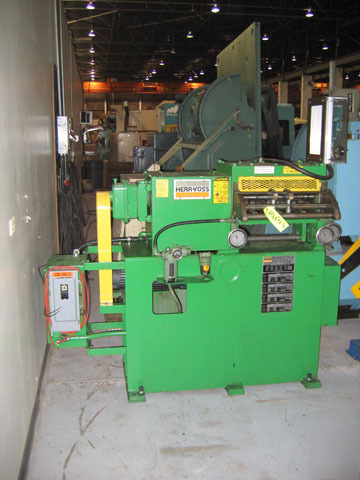

VOSS MODEL S.P.20/1.156-17/3 LEVELLER*
Capacity: 16" x .016" - .047" (Mild Steel)
16" x .0" - .067" (Aluminum)
16" x .0" - .041" (Stainless Steel)
Number of Leveling Rolls: 17
(1) Set of Power Driven Pinch Rolls
Diameter of Leveling Rolls: 1.156"
Overall Width of Leveling Rolls: 16"
Speed (Variable): 100 FPM (Max.)
Backed-Up Top and Bottom Rolls
Precision Radial Tilt Adjust w/Dial Indicator
Precision Roll Hight Adjust w/Dial Indicator
Adjustable Entry Guide Rolls
Cascading Support Rolls
SAF DC Drive System
3 HP DC Main Drive Motor
Electrical Controls
Approximate Overall Dimensions: 75" L-R x 27" F-B x 75" H
Approximate Weight: 3,000 Lbs.
Serial Number: 22429 (New 1984)
P2 F.O.B. Elk Grove, IL - $ 29,500.00
