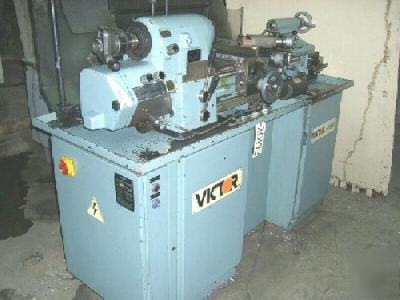

Victor toolroom lathe 11"X18" cc, no. 618EM (20173)


Subject: Victor toolroom lathe 11"X18" cc, no. 618EM (20173)
11" x 18" cc, VICTOR, 618EM, Toolroom, Inch/mm, 130-3000 RPM, 5C Collet, 1996 Our stock number: 20173 MODEL: 618EM
SERIAL NUMBER: 8118179 Year: Approximately 1996
Spindle Capacity, Round 5C Collets: 1-1/16"
Variable Spindle Speeds: 130 to 3000 RPM
Carriage Power Feed: 5/16" to 7" Per Minute
Cross Slide Power Feed: 3/16" to 4" Per Minute
Tailstock Spindle Diameter: 1-3/8"
Tailstock Spindle Travel: 3-3/4"
Tailstock Spindle Taper: No. 2 Morse
Leadscrew Diameter: 1" - 8 Threads
Thread Changes In Gear Box: 72
English Threads: (36) 11 to 108
Metric Threads: (36) .275 to 2.7
Inch/Metric Quick Change Gear Box
Independent Electric Variable Power Feed Drive For
Electric Panel With Start/Stop Buttons, Forward/Reverse
Faster/Slower Push Buttons, Brake Off Switch, Coolant
Carriage Feed 0-100 Selector Dial With Left/Stop/Right Switch
Hardened and Precision Ground Bedways
5C Lever Operated Collet Closer
