Vertical milling machine 50 taper, 13.6 hp 12.5" x 63"


Subject: Vertical milling machine 50 taper, 13.6 hp 12.5" x 63"
You are invited to purchase or "MAKE YOUR BEST OFFER" on a "good conditioned" Mechanicy "Polish" Vertical Milling Machine Model Number FWA 41 M and Serial Number 1-3004-70-42 which we personally sold new in 1975 and is still owned by the original owner.¬
The following are the specifications of this Heavy Duty 50 Taper Vertical Milling Machine:
Max. Table Swivel Angle¬ +/- 45 degrees
Max. Weight of Workpiece¬ 990 Pounds
Long Table Travel¬ 42" Power or Manual
Vertical Travel¬ 17" Power or Manual
Cross Table Travel¬ 14" Power or Manual
Spindle Speed Range¬ 28 - 1300 Rpm's
Machine Weight¬ 11,500 Pounds
Machine Approximate Foot Print¬ 7' High 6' Wide, 5' Deep
Voltage 220/440, 3 Ph, 60 Cycle

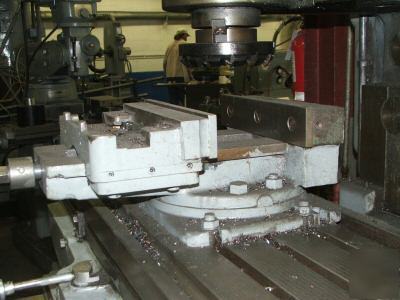

This machine has a power table x & y, power knee travel and power head travel and of course rapid traverse in all instances.¬ Included in the sale is at least 8 or more toolholders, 12" x 6" Swivel Heavy Duty Machine Vise, Work Light, Coolant System, Pendant Control, Operating Manual and machine prints are included in the sale.¬
We personally sold this machine new in 1975 and is presently still owned by the original purchaser.¬ The machine has been kept in a good running order and would continue to give a new owner many, many years of service.¬ This fine example of a "VERY" heavy duty vertical milling machine is located in Dayton, Ohio and can be seen under power by appointment.
Please review our "Feedback and About Us" where you will find that we ALWAYS try to fairly describe all items and offer a 7 day return guarantee (freight prepaid) if item is not as listed.
We thank you in advance for your interest in this item and should you have any questions please feel free to ask them of us and we will try to answer them.
