Subject: Verson S2-300-54-30 straight-side press

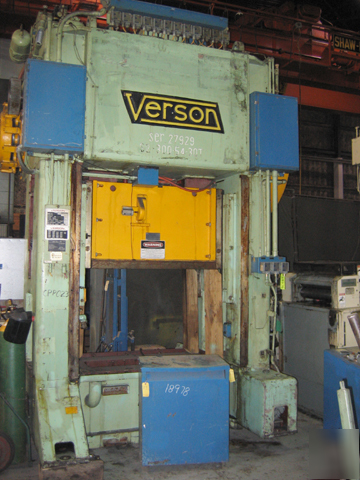

VERSON MODEL S2-300-54-30 STRAIGHT-SIDE, DOUBLE CRANK PRESS*
Capacity: 300 Ton
Stroke: 8"
Shut Height Over Bed (SDAU): 30"
Slide Adjustment (Motorized): 5"
Bed Area: 54" L-R x 30" F-B
Slide Face Area: 54" L-R x 30" F-B
Window Openings: 23" Wide x 28" H
Speed (Variable): 30 - 60 SPM
Bed to Floor: 30"
Air Clutch and Brake with Selector Controls
Tie Rod Construction
EQUIPPED WITH:
(2) Air Counterbalance Cylinders to Slide
Automatic Recirculating Lubrication System
50 HP DC Main Drive Motor
Approximate Overall Dimensions: 140" L-R x 106" F-B x 200" H
Approximate Weight: 65,000 Lbs.
Serial Number: 27929 (New 1983)
P2 F.O.B. Elk Grove, IL - $ 74,500.00
* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
