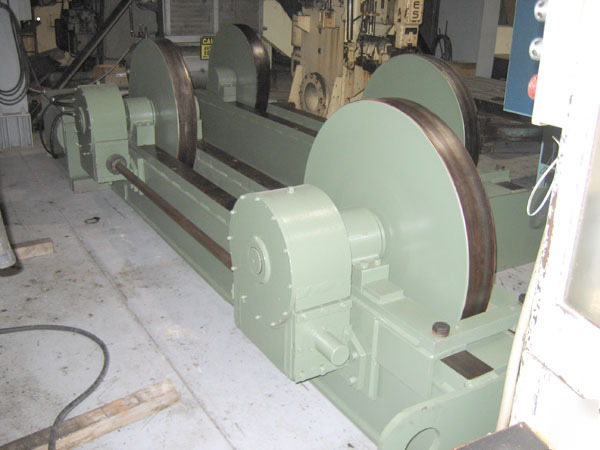

UNIQUE-READCO MODEL HDR-300 STEEL WHEELS, TANK TURNING ROLLS*
Driver Turning Capacity: 300 Ton
Driver Load Capacity: 150 Ton
Idler Load Capacity: 150 Ton
Driver & Idler Maximum Load Capacity: 300 Ton
Workpiece Diameter Range: 3' - 20'
Wheel: 40" O.D. x 5" Face (Solid Steel)
Distance Wheels CC: 52" Min. - 96" Max.
(1) Driver Unit (SN: 103404)
(1) Idler Unit (SN: 104508)
DC Main Drive Motor
Approximate Overall Dimensions: 185" L-R x 43" F-B x 48" H
Approximate Weight: 22,000 Lbs.(IDLER: 130"X 36"W X 48"H)
Serial Number: 103404/104508 (New 1969)
P2 F.O.B. Elk Grove, IL - $ 34,500.00
* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
