Trueblood plastic injection molding machine #2003


Subject: Trueblood plastic injection molding machine #2003

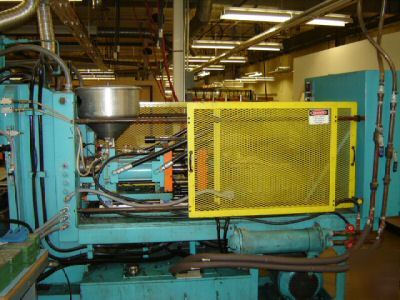

Trueblood Plastic Injection Molding Machine #2003
This plastic injection molding machine, as shown by the model number, is a 75 ton with an 8oz shot size.
* Type is a horizontal inject with a vertical clamp.
* Shuttle distance is 14" from left to right.
* Clamp height is 8.5" from the clamp to the shuttle when closed.
* Ccurrently set up to run on 240VAC, 3PH and is internally fused at 70 amps.
* Hydraulic system holds and contains 60 gallons of hydraulic oil.
* The 20 HP hydraulic pump has recently had a new $1800 head installed.
* Controller is an Allen Bradley SLC 100.
* Model number is A-75-8 and Serial 0487821
* Measures 60"W x 114"D x 80"H
* A weight guestimate is over 9000 pounds.
It was just taken out of working service on October 8, 2006 and was maintained very well.
Click here to see the other specs for this item.
We will be happy to answer emailed questions about this machine.
