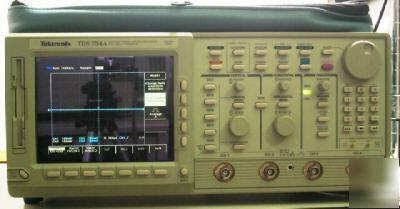

Tektronix TDS754A Digitizing Oscilloscope * InstaVuTM Acquisition (up to 400,000 wfms/sec) * Pulse width, 1 ns glitch; runt, pattern, state, triggering * 1 mV/div -10 V/div sensitivity * Infinite and variable persistence * Record lengths to 500,000 points * 8-bit vertical resolution and up to 13 bits with HiRes * High resolution color monitor * 3.5 inch DOS floppy disk drive (standard) * Tek TriStarTM (DSP) processor * Slew Rate, Setup & Hold Violation, and Time-out triggers * Waveform pass/fail testing * Advanced signal processing functions * Desktop publishing outputs * Segmentable acquisition memory * Direct Readout in "Amperes" and "Watts" using P5200 and TCP202 Probes * HP Deskjet printer support * Tektronix P6139A 500MHz 8.0pf, 100Mohm 10X 1.3 meter voltage probes, 4ea * Tektronix 75 Ohm Term 011-0055-01 * Reference 070-9382-01 for TDS500B, TDS600B & TDS700A digital oscilloscope * Instruction manual 070-8748-02 for TDS family 0.5 Video Trigger Interface * Technical reference 071-9720-01 for TDS500B, TDS600B & TDS700A digital oscilloscope performance verification and specification * User manual 070-9719-00 for TDS500B, TDS600B & TDS700A digital oscilloscope |
