Tek 2782 33GHZ spectrum analyzer


Subject: Tek 2782 33GHZ spectrum analyzer

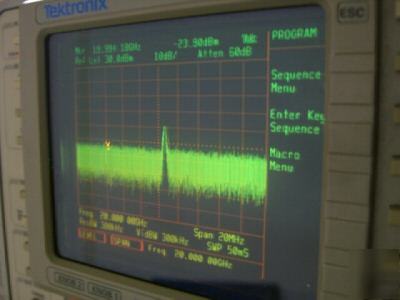

includes recent cal. with CERT. tektronix 2782 33GHz spectrum analyzer 100Hz-33GHz DynamicRange100dB resBW 3Hz-10MHz Color CRT Analog/Digital display 2GP-IB Freq counter1Hz res Momory20 Span 10Hz-33GHz stability 7*10E-9/day resBW 3Hz-10MHz 1,3,10step Videofilter 0.003Hz-7MHz resFM 1Hzp-p/s purity -105dBc/10KHz Input 50ohms SMA -135-+30dBm ATT 0-70dB IF 0-140dB Product Description: Tektronix 2782 100 Hz-33 GHz Spectrum Analyzers The Tektronix 2782 spectrum analyzer is a wide band, very sensitive receiver. It works on the principle of "super-heterodyne receiver" to convert higher frequencies (normally ranging up to several 10s of GHz) to measurable quantities. The received frequency spectrum is slowly swept through a range of pre-selected frequencies, converting the selected frequency to a measurable DC level (usually logarithmic scale), and displaying the same on the CRT of the Tektronix 2782. The CRT displays received signal strength (y-axis) against frequency ( x-axis). Some applications for Tektronix 2782 Spectrum Analyzers include Site Monitoring: Verify that the frequency and signal strength of your transmitter is accurate. Interference: Before a system is installed you use a Tektronix 2782 spectrum analyzer to verify that the frequencies (you plan to use) are not occupied or if the presence of a very strong signal will interfere with your new setup. Interference can be created by a number of different situations. Other tests that utilize the Tektronix 2782 spectrum analyzer features include antenna isolation, co-channel interference, adjacent channel power, occupied bandwidth, intermodulation, microwave or satellite antenna alignment, and characterization of components. External Waveguide Mixer Support to 325GHz with Frequency Calibration to 1.2THz Mixed input decoupling Exclusive bandwidth mode Built-in automation Macro downloading Soft key Menu Performance Characteristics of the 2782 Form Factor Mainframe Input Impedance 50 Ohm Minimum Frequency 100 Hz Maximum Frequency 33 GHz Frequency Accuracy 0.0000000001 % Zero Span Yes Minimum Span 0 Hz Maximum Span 40 GHz Minimum Sweep Time 2 us Maximum Sweep Time 200 s Minimum Resolution Bandwidth 3 Hz Maximum Resolution Bandwidth 10 MHz Resolution Bandwidth Steps 1/3/10 Minimum Video Bandwidth 0.03 Hz Maximum Video Bandwidth 7 MHz Video Bandwidth Steps 1/3/10 Maximum Safe AC Input 30 dBm Maximum DC Input 0 V Minimum Displayed Average Noise -107 dBm Maximum Displayed Average Noise -78 dBm Maximum Dynamic Range 100 dB Trigger Source Internal Trigger Modes Freerun,TTL 2nd IF Input Connector Type Type-N(f) Probe Power Yes Noise Source Driver No Programmability/Connectivity of the 2782 User Interface Proprietary Ports to Peripheral Devices GPIB Test Pattern Storage 20 Patterns Novram data storage Yes 2782 Life Cycle Data 2782 Compliance CE Compliance Not on file UL Compliance Compliant 2782 Power Requirements Input Power Universal (Auto Sense and Switch) 2782 Physical Dimensions * Width: (N/A) * Height: 204 mm(8.03 in) * Length: 472 mm(18.58 in) * Weight: 20 kg(44.09 lb) Options for 2782 Option US List Price 04 / IF Output tailored for 3050 $2,500 18 / WM782 Bands Q, U, V, E & W $14,125 19 / WM782 Bands A, U, E, F, G, & J $22,870 20 / Utility s/w for PC, incl GPIB $1,530 30 / Rackmount for 19in W, 5.25in H $525 95 / CAL DATA REPORT TEST DATA $150 96 / CERTIFICATE OF CALIBRATION $50 B1 / ADD SVC MANUAL $250 B2 / OPTS SVC MANUAL $350 R2 / Service Assurance: 2 Years Repair Protection $1,130
