Subject: Southwestern trak sport B3 cnc bed mill prototrak
1 – TRAK SPORT B3 3-AXIS CNC BED MILL, SERIAL #980054,
TRAVELS: X / Y / Z 31” X 17” X 23.5”
MAX ALLOWABLE WEIGHT ON TABLE 1320 LBS.
SPINDLE SPEED RANGE 70 TO 4200 RPM
DISTANCE, SPINDLE TO TABLE 0 TO 24”
SPINDLE CENTER TO COLUMN FACE 17.3”
QUILL FEEDS .002, .004, .006 IPR

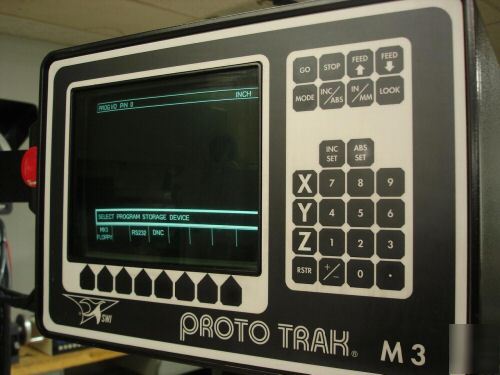

PROTOTRAK M3 CNC CONTROL DC SERVO MOTORS
3-AXIS SIMULANEOUS INTERPOLATION QUILL FEEDBACK VIA GLASS SCALE
GEOMETRY BASE PROGRAMMING FLOOD COOLANT
TOOL COMPENSATION (2) 3.5” FLOPPY DRIVES
PROMPTED DATA INPUT POWER DRAWBAR
3D GRAPHICS ALL NECESSARY MANUALS
GLASS SCALES DNC OPTIONS
This machine is located in our Dayton OH warehouse where it can be inspected under power at any convenient time. Loading on to flat bed air ride truck available at no additional charge.
