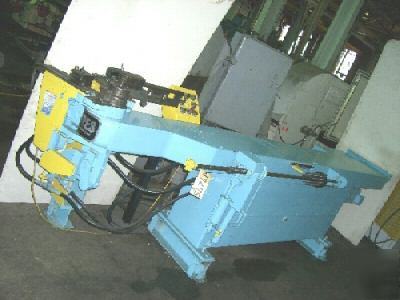

1-3/8", PINES, No. 3/4, Horizontal, Hyd., 1973, Clean Our stock number: 19275 Pines Horizontal Bender MODEL..............3/4 Pines Horizontal Bender SERIAL NUMBER..........11000-73490 Pines Horizontal Bender GENERAL SPECIFICATIONS Maximum Radius..........................10" Maximum Tube Length Over Mandrel........9'11" Average Maximum Bending Arm Speed.......27 RPM Height From Floor to Centerline of Bending Form...........................35" Maximum Bend Angle......................180 Degrees + Overbend Bend Angle Accuracy.....................+ or - 1/4 Degree Pines Horizontal Bender EQUIPPED WITH 5 HP Drive Motor & Electrical Controls Pedestal Mounted Multiple Push Button Operation Manually Adjusted Degree-Of-Bend Turret Pines Horizontal BENDING CAPACITIES I.P.S. Extra Heavy Pipe.................3/4" (Schedule 80) Non-Ferrous Tubing Y.P. to 12,000 PSI...1-1/2" OD x .093" Wall Non-Ferrous Tubing Y.P. to 25,000 PSI...1-1/2" OD x .065" Wall Steel Tubing Y.P. to 40,000 PSI.........1-3/8" OD x .065" Wall Stainless Steel Tubing Y.P. to 60,000 PSI: 1-1/8" OD x .065" Wall Steel Bar Round Y.P. to 40,000 PSI......3/4" Diameter Steel Bar Square Y.P. to 40,000 PSI.....11/16" Square Angle Iron Y.P. to 40,000 PSI...........1-1/4" x 1-1/4" x 3/16" Square Tube (Mild Steel)................1" x .065" Wall Rectangular Tubing (Mild Steel) E-Plane..1" x 1-1/4" x .065" Rectangular Tubing (Mild Steel) H-Plane..1" x 1-1/4" x .049" Pines Horizontal Bender Approximate Weight..........2750 Lbs. |
