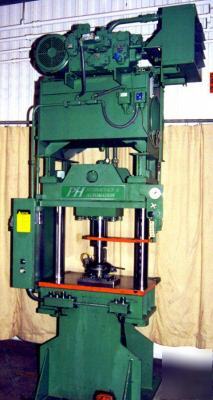

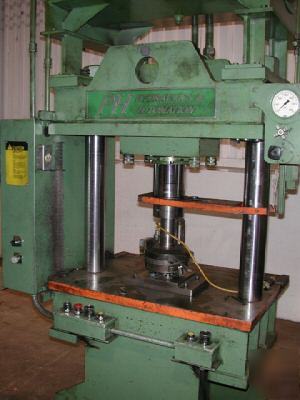

(1) USED - 50 TON P&H HYDRAULIC AUTOMATION 2-POST DOWN ACTING HYDRAULIC PRESS* Serial No. 60150 New - 1990 Capacity 50 Ton Stroke - Maximum 4" Daylight 16" Cylinder Bore 8" Ram Diameter 5-1/2" Bed Area 26" L-R x 20" F-B Speeds - Advance 314 IPM - Press 37 IPM - Return 282 IPM Tie Rod Diameter 4" Distance Bed to Floor 39" Pressure - Maximum 1990 PSI Approximate Weight 8,500 Lbs. Approximate Overall Dimensions 38" L-R x 42" F-B x 120" H Pressure Adjustment with Gauge 10 HP AC Main (Pump) Drive Motor, 3/60/230/460 V Electric Foot Switch Operation *Preliminary Specifications Subject to Verification. |
