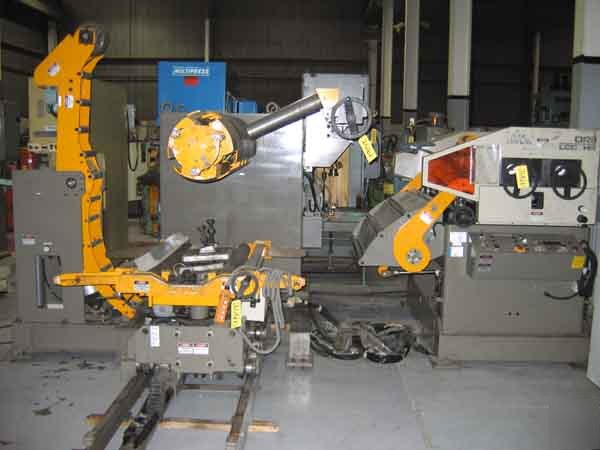

Orii LCC13HRMAX-mhs servo coil line


Subject: Orii LCC13HRMAX-mhs servo coil line
Material Thickness: .016" - .126"
Maximum Coil Weigh: 15,000 Lbs.
Material Width Capacity: 2.76 - 51.2"
Maximum Coil Outside Diameter: 55"
Inside Coil Diameter: 16" - 20"
Number of (Powered) Straightener Rolls: 7
Feed Rate (Programmable): 866 IPM Max.
Feed Direction: Left to Right
Feed Length (Programmable): 19.7" Max.
Pass Line Height: 47.2"
PLC Control; Hydraulic Mandrel Expansion
Traveling Coil Car; Hold Down Arm w/Threading Wheel
Adjustable Stock Entry Guide Rolls
Manual Straightener Rolls Adjust w/Dial Indicators
Pneumatic Roll Lift; Threading Table
Hydraulic Power Unit
8 HP AC Main (Straightener) Motor
5 HP AC Main (Pump) Motor
Programmable Feed Length and Speed Control
Electrical Controls; Push Button Operation
Approximate Overall Dimensions: 170" L-R x 110" F-B x 90" H
Approximate Weight: 15,000 Lbs.
Serial Number: 02HR-0034 (New 2002)
P2 F.O.B. Elk Grove, IL - $175,000.00
Email us at
Call our Sales Staff at
Prices do not include any federal, state or local taxes, which are in addition to the purchase price and must be paid by the Purchaser. Any and all foreign duties and taxes are the responsibility of Purchaser. Unless Purchaser furnishes PMS with a tax exemption certificate, any sales, use, excise, or other similar tax, where applicable, shall also be the responsibility of Purchaser and may, at the election of PMS, be added to the quoted purchase price and invoiced by PMS to Purchaser. The failure of PMS to invoice such taxes does not excuse the Purchaser from responsibility for paying necessary taxes.
Some machinery and equipment is located at Fortune 100 Manufacturing Facilities. Most of the machinery and equipment located at these Facilities is disconnected and cannot be seen under power. Unless specifically listed in writing by PMS, all machinery and equipment uses 3 Phase power.
