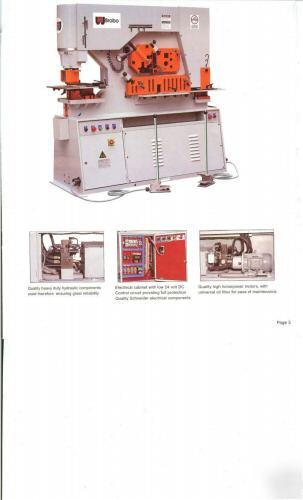

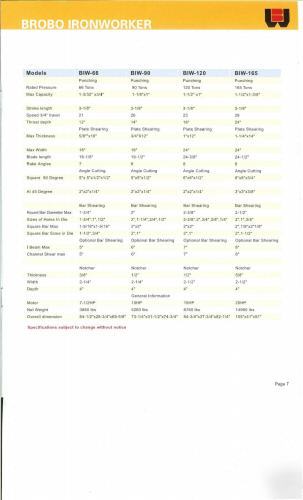

New BROBO 120-ton Dual Cylinder Hydraulic Ironworker SPECIFICATIONS: Punching: • Rated Pressure.......................... 120 Tons • Max. Capacity (Mild Steel)......... 1-1/2" Hole through 1" Material • Stroke Length............................. 3-1/8" • Stroke Speed @ 3/4" Travel..... 23 Strokes per Minute • Throat Depth............................... 16" Plate Shearing:• Max. Thickness........................... 1" x 12" • Max. Width................................... 24" Angle Cutting: • Square 90°.................................. 6" x 6" x 1/2" • At 45°............................................ 2" x 2" x 1/4" Bar Shearing: • Round Bar Diameter Max......... 2-3/8" • Square Bar Max.......................... 2" x 2" Optional Shearing: • I-Beam Max................................. 7" • Channel Shear Max................... 7" Notching: • Thickness.................................... 1/2" • Width............................................ 2-1/4" • Depth............................................ 4" General Information: • Motor............................................. 15 HP • Net Weight................................... 8,760 lbs. • Overall Dimensions.................. 85" x 38" x 83" High One Year Warranty STANDARD FEATURES: Electric Precision micro stop Production backguage,guage tables on Punch,Notcher,and Shear. Press brake attachment.Punch and Die starter set,quick change punch coupler. Electrical cabinet with low 24 volt DC control circuit providing full protection. Punching station: Unique style allows for large angle iron punching and large channel punching; Large viewing window on stripper; Swing away design of stripper for ease of operation; Large two piece gauging table with rulers and stop; Quick change coupling nut and sleeve for rapid replacement or change. Plate shear station: Easily adjustable hold down with good operator visibility for accurate cutting; Large 15" squaring arm with inlaid scale; Specially contoured anti-distortion blade for quality cuts; Lower blade has four usable edges; Allen heads set screws allow for easy gapping of the machine (no shimming required). Angle station: Large strong guarding for maximum safety; Ability to cut angle iron at 45 degrees both top and bottom leg; Diamond shaped blade for quality cuts and no material loss with minimal deformity. Bar station: Multiple round and square holes for a variety of sizes; Adjustable holddown for clean square cutting; Optional channel and I beam shear blades available. Notching station: Unique design allows for unsurpassed cutting of angle and flat bar; Electrically interlocked safety guard for maximum operator safety; Ventilated guard for maximum operator visibility; Three gauging stops for precise positioning. The low pressure setting for tool change provides maximum operation safety. The long punching cylinder stroke and deep throat enable mounting a wide range of special equipment. The heavy duty T-slot table is ideal for holding die blocks, accessories and a wide range of custom tooling.Very nice machine!
|
