Mitsubishi model FX20 cnc wire-cut edm W11FX

Subject: Mitsubishi model FX20 cnc wire-cut edm W11FX

MITSUBISHI MODEL FX20 CNC WIRE-CUT EDM
Serial No. 57E20544 New: 1997

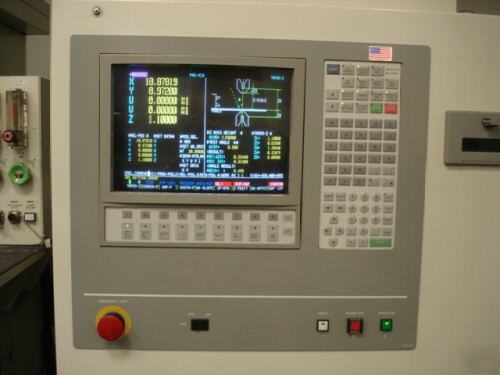

Mitsubishi W11FX 32-Bit CNC Control. Automatic Threading. Remote Hand Control. Mitsubishi Chiller.
Max. Workpiece Dimensions 43.3" x 31.5" x 11.6"
Workpiece Weight 1765 Lbs.
Max Workpiece Thickness 9.84"
Min. Hole Diameter 0.019"
Wire Diameter 0.0078" - 0.011"
Table Dimensions 30.7" x 24.8"
Table Height From Floor 35.43
X-Axis 19.69"
Y-Axis 13.77"
Z-Axis 11.81"
U&V Axis ± 1.25"
Max. Taper Angle 15°(For Workpiece 100mm Thick)
Table Rapid Feed Speed 51.18 IPM
Dielectric Tank Capacity 168 Gal.
Approx. Overall Dimensions 100"W x 124"D x 81"H
Approx. Weight 6,990 Lbs.
This machine is in excellent condition. It may be inspected under power at your convenience.
