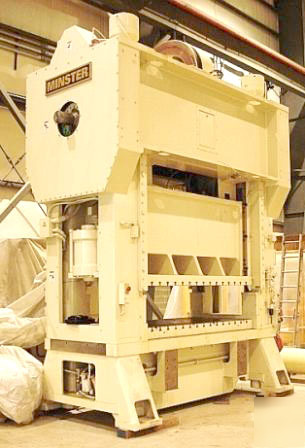

Minster E2-400-96-48-sg straight side press

UpUp


Subject: Minster E2-400-96-48-sg straight side press
MINSTER MODEL E2-400-96-48-SG SINGLE-GEARED DESIGN, STRAIGHT SIDE, DOUBLE
CRANK PRESS W/MINSTER COIL LINE*
Capacity: 400 Ton
Stroke: 8"
Shut Height over Bed (SDAU): 30"
Slide Adjustment (Motorized): 6"
Distance Floor to Bed: 44"
Bed Area: 96" L-R x 48" F-B
Slide Face Area (T-Slotted): 96" L-R x 48" F-B
Window Openings: 31" Wide
Speed (Variable): 40 - 80 SPM
Air Clutch and Brake with Selector Controls
Enclosed Gears Running in Oil
Tie Rod Construction
EQUIPPED WITH:
(2) Air Counterbalances to Slide
T-Slotted Bolster Plate (6" Thick)
Automatic Recirculating Lubrication System
60 HP AC Eddy Current Main Drive Motor
Electrical Controls w/Color Touch Screen
Dual Palm Buttons Operation (Front & Rear Mounted)
*** COMES WITH COMPLETE MINSTER COIL LINE ***
ELECTRIC FEED MEF5-20S (20" X .187"); STRAIGHTENER MSH20-20-7
(20" X .200"); THREAD TABLE TT14-26S (168" X 26")
REEL MRH10-26S (14,000 LB X 26"); COIL CAR MCCH-35
(35,000 LB X 72" COIL WIDTH)
****BRAND NEW. NEVER USED. NEVER INSTALLED ***
Approximate Overall Dimensions: 142" L-R x 80" F-B x 0" H
Approximate Weight: 140,000 Lbs.
Serial Number: 30027 (New 2001)
P2 F.O.B. WAREHOUSE, OH - $795,000.00
* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
