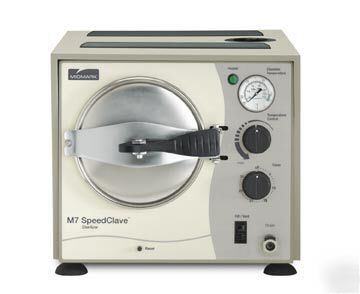

Midmark M7 speedclave self-contained steam sterilizer


Subject: Midmark M7 speedclave self-contained steam sterilizer
Midmark M7 SpeedClave Self-Contained Steam Sterilizer BRAN NEW The Midmark M7 self-contained steam sterilizer makes sterilization quick and efficient.
The fastest and most efficient sterilizer available! At only 11 1/2 minutes from a cold start, you won’t find a faster conventional sterilizer than the Midmark M7 SpeedClave®. Starting hot, the M7 sterilizes unwrapped instruments in just 9 minutes! And, with constant improvements and new technology, the M7’s reliability just keeps getting better. It meets U.L. 61010A-1 requirements. This self-contained unit sterilizes wrapped or unwrapped instruments, linen packs and glassware. No plumbing is required as the M7 has its own reservoir for distilled or demineralized water. For added convenience, we’ve included three corrosion-resistant, stainless steel trays. It’s also economically priced, making it not only the best, but the best product for your money.
Low water cut-out switch prevents “dry burning”. The M7 will operate only when there is enough water present, which prolongs the life of the heating element. A pilot light is on when the heater is on and rotates off and on during normal cycle.
It restores operation after the cut-out switch is tripped and you have added water. The cycle timer regulates steam time from 0 to 30 minutes and automatically turns the M7 off when the sterilization cycle is complete. This prevents over-sterilization thus extending the service life of your instruments.
A safety door protects the operator.
It automatically seals when pressurized and will not allow the operator to open the door until the chamber is safely depressurized. The temperature regulator allows the operator to preset the temperature at a desired setting between 250?F (121?C) and 270?F (132?C). This control, acting as a thermostat, cycles the heating element on and off.
A temperature gauge indicates the temperature inside the chamber. The gauge is graduated in two-degree increments from 80?F (26.7?C) to 270?F (132?C).
With our front draining feature, it’s easy to clean and maintain. All controls and information are on the front and easily accessible to the operator.
Overall length w/plug: 19" (48.3 cm)
7.5" diameter (19.1 cm) 15" depth (38.1 cm)
2.4 gal. usable volume (9.0 liters)
Two large - 5.62" W x 12" L x .88" D (14.3 cm x 30.5 cm x 2.2 cm)
One small - 4.12" W x 12" L x .88" D (10.5 cm x 30.5 cm x 2.2 cm)
Unit weight: 30 lbs. (13.6 kg)
Water reservoir capacity: 1.31 gal. (4.9 liters)
115 VAC, 60 Hz, 10 AMPS Single phase
115 VAC has 1136 watt tubular immersion heater
230 VAC, 50 Hz, 5 AMPS Single phase
A separate (dedicated) circuit is recommended for this sterilizer.
