Subject: Meiji trinocular metallurgical scope MX7100 30W koehler

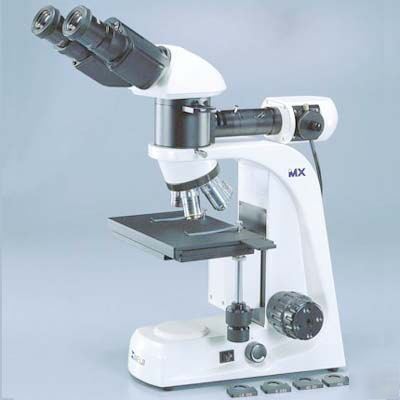

MEIJI MX7100H TRINOCULAR incident light Microscope - complete with 10X eyepieces (MA817), Plan Epi Brightfield Infinity objectives, 30W Vertical Koehler Illuminator.
Options for Brightfield/Darkfield observation are available.
Click here for more MX series scopes and accessories.
Meiji Techno's new upright Brightfield incident light metallurgical microscope is the new and cost-effective MX7000 Series Microscope. The MX7000 Series employs all new and improved optics. Meiji Techno's ICOS™ (Infinity Corrected Optical System) makes the obsevation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio. The MX7000 Series features include:
* Ergonomically positioned controls
* Comfortable Siedentopf viewing head
* 30W Vertical Koehler Illuminator with auto sensing power supply
* Brightfield observation mode
* Optional Ergonomic binocular viewing head available
Model MA815 is the Siedentopf-type binocular head and Model MA816 is the trinocular head for camera integration. Each head has the eyetubes inclined at 30° with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm - 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. The optional Ergonomic Viewing Head has the inclination adjustable from 10 to 50 degrees to fit any size user.
10X Super Widefield High Eyepoint eyepieces F.N.22 are standard, and 15X and 20X eyepieces are available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts 25mm reticules is also available.
The smooth-operating, ball bearing mounted, quintuple nosepiece provides effortless objective changes.
Meiji Techno offers an assortment of Plan Epi Infinity Corrected objectives for Brightfield work.
Ceramic coated left or right-handed, flat top stage measures 191mm x 126mm with x-y travel: 100mm(X) x 100mm(Y). Ergonomically positioned coaxial drop down controls. ILLUMINATION
Powerful 30 watt halogen illumination provides enhanced image quality and brightness for the observation of metallurgical specimens.
Ceramic Coated Fixed flat-top left or right-handed controls
Plan Epi Brightfield Objectives - Infinity Corrected - F = 200mm
Plan Epi 5X objective, NA: 0.10, Working Distance = 20.0mm (included)
Plan Epi 10X, objective, NA: 0.25, Working Distance = 7.48mm (included)
Plan Epi 20X, objective, NA: 0.40, Working Distance = 5.2mm (included)
Plan Epi 50X, objective, NA: 0.75, Working Distance = 0.38mm (included)
Polarizing filter, 20 mm in-mount (included)
Blue clear filter, LB100, 20mm in-mount (included)
Green clear filter, clear, 20mm in-mount (included)
ND50 Neutral density filter 20mm in-mount (transmission: 50%) (included)
