Meiji emz-8TRU trinocular zoomstereo microscope nvi tm


Subject: Meiji emz-8TRU trinocular zoomstereo microscope nvi tm

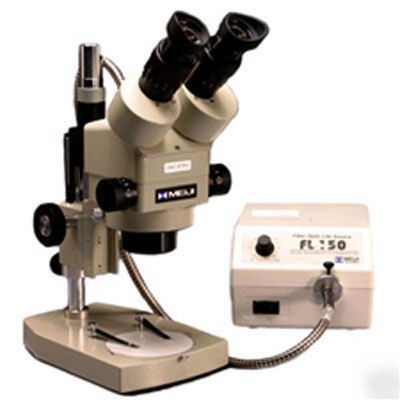

MEIJI EMZ-8TRU TRINOCULAR Stereo Zoom Microscope - complete with 10X eyepieces (MA502), P stand with FL150/115 light source and FL150/12 light pipe.
Click here for more scopes, ZOOM bodies, stands, and accessories.
This most popular Meiji binocular stereo microscope has a zoom range of 7x -45x. Included on the PBH stand are transmitted and reflected halogen illuminators with intensity adjustment.
The 10x eyepiece lenses can be replaced with 5x, 15x, 20x or 30x pairs.
Auxiliary objective lenses are available to further increase or decrease the magnification and to reduce or decrease working distance.
The modular design and readily available options for various stands, eyepieces, illumination and numerous lets this scope adapt to future needs.
Scope comes with dust covers and rubber eyeshields.
Trinocular and rotatable 360°
* Near Vertical Illumination
Zoom Control: Dual, graduated, bilateral mount
Magnification: 7x – 45x (with 10x eyepieces)
Field of View: 32.8mm – 5.1mm
Interpupillary Distance Adjustment: 54mm – 75mm
Dioptric Adj: Dual (+/- 5 diopters)
Extended Mag Range: 2.1x – 75x
Extended Working Distances: 34mm – 270mm
(with supplemental objectives and eyepieces)
Halogen Illumination with Light Guide
Other MEIJI Stereo Zoom Microscopes
EMZ-5, EMZ-5D, EMZ-9, EMZ-10, EMZ-12, EMZ-13
