Subject: Kohler 12-120-150 straightener

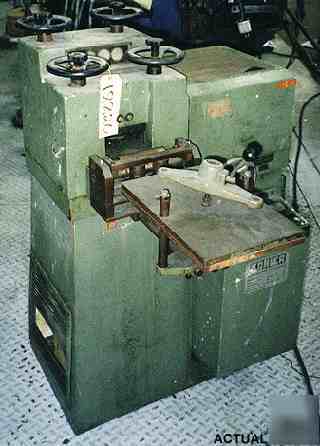

KOHLER MODEL 12-120-150 PRECISION PARTS & STRIP STRAIGHTENER
Maximum Width: 4.7"
Maximum Thickness: .060"
Minimum Thickness: .004"
Number of Straightening Rolls: 19
Diameter of Straightening Rolls: .472"
Feed Rate (Variable)
Adjustable Upper Straightener Rolls
All Straightening Rolls Power Driven
Rolls Backed-Up Top And Bottom
EQUIPPED WITH:
(4) Dial Indicators for Top Roll Adjustment
.75 kW AC Main Drive Motor
Vari-Speed Drive
Electrical Controls
Push Button Operation
Approximate Overall Dimensions: 32" L-R x 41" F-B x 50" H
Approximate Weight:
Serial Number: 30099 (New 1975)
P2 F.O.B. EISLINGEN, GERMANY - $ 2,500.00
