Jet gh-1660ZX 16" x 60" large spindle bore lathe

UpUp


Subject: Jet gh-1660ZX 16" x 60" large spindle bore lathe

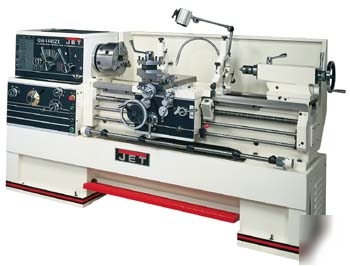

JET GH-1660ZX 16" x 60" LARGE SPINDLE BORE LATHE
BRAND NEW Model "GH-1660ZX, 16" Swing 60" Centers, D1-8 Camlock Spindle, 7-1/2HP, 3Ph, 230/460V"
NEW PROMO comes with a FREE 23 Piece Tool Kit! This is a $259.00 value. See details below.
WE ARE AN AUTHORIZED JET/WILTON DISTRIBUTOR
* Uniquely designed exclusively by JET*
* ISO 9001 certified manufacturer
* 3-1/8" bore spindle is supported by two tapered and one ball bearing
* Chrome molybdenum headstock gears are hardened, ground, and shaved
* Universal gearbox allows inch, metric, diametral, and module pitch threads, no change gears required
* Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
* T-slotted compound slide featuring a four-way tool post
* One-piece cast iron base absorbs vibration allowing heavier cuts
* High quality ANSI Class 50 wear-resistant cast iron bed ways are hardened and ground
* Removable gap allows up to 23-5/8" diameter work
* Five position automatic carriage stop increases productivity
* Attractive chrome control levers, dials, and knobs complete this impressive package
* Tolerance test certificate included
* 10" 3-jaw chuck with top reversing jaws
* Large capacity steady rest
* Fully integrated coolant system
* Full length splash guard and coolant return
* Large easy to use foot brake
* Articulating halogen work lamp
* Centrally located controls with jog button
* Mounting pads and levelers
* Spindle sleeve (MT-7 to MT-5)
* Tool box and adjusting tools
Distance Between Centers (in.)
Number of Longitudinal and Cross Feeds
Range of Longitudinal Feeds (in./rev.)
Range of Cross Feeds (in./rev.)
Maximum Compound Slide Travel (in.)
Maximum Cross Slide Travel (in.)
Tailstock Spindle Travel (in.)
Overall Dimensions (in./L x W x H)
7-1/2HP, 3Ph, 230/460V Prewired 230V
* With 2 year manufacturer's warranty
MOORE TOOL PRICE : $11,995 WITH FREE FREIGHT
If you have any questions about this product contact us
