Ih farmall international 766 786 TO1566 and 1586 nfront


Subject: Ih farmall international 766 786 TO1566 and 1586 nfront

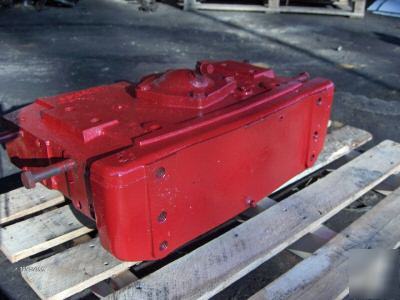

This listing is for one hard to find steering configuration for the later model IH tractors!! It is the three major parts required to put a narrow front end under a 66 or 86 series IH tractor! The upper bolster (part # 531257R11) slides into the frame rails and allows the installation of a tricycle type front end. The T Post or lower part of front end is the heavy duty version Pt#379989R11 and will come with new bearings and your choice of 6 or 8 bolt hubs and rims. NO TIRES INCLUDED IN THE LISTING!!! The upper bolster is commonly called the "wet bolster" as it has an internal cylinder, and it is different than the bolster used in the older model tractors like the 06 and 56 series. It is also used for all single wheel, some MFD and HYCROP axle installs. They are desirable for collectors, tractor pullers and for some types of farming operations.
You will need to provide your own steel lines to route the hydraulic oil to the bolster.
This is a very heavy package, pickup here or freight rates are available if you send us a zip code. Figure about 500 lbs.
No we are not selling the one on this tractor it is just pictured to show you all what they look like on the tractor!!
